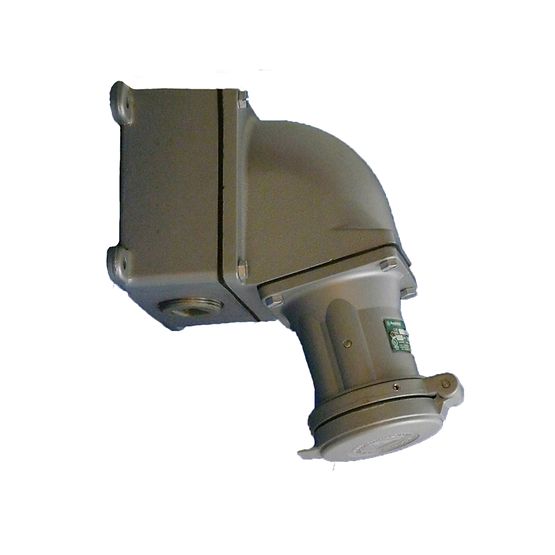

Emerson ACP6034BC APP 3W-4P 60A NEMA 3R/4X Pin/Sleeve Plug

Product Description

Emerson ACP6034BC APP 3W-4P 60A NEMA 3R/4X Pin/Sleeve Plug is designed for safe and reliable power connections. This plug features three wires and four poles. It operates at a voltage of two hundred fifty to six hundred VAC/VDC. It is suitable for various applications including welders and motor generator units.

• Neoprene bushing prevents water entry
• Suitable for fixed and portable equipment
• Meets NEMA 4X rating when properly installed

Product Highlights

This plug is built with a durable design that withstands harsh environments. It includes pressure wire terminals for secure connections.

Product Information

Standard Information

• MPN: ACP6034BC
• Manufacturer: Emerson Electric

Technical Specifications

• Amperage Rating: 60 A
• Application: Used with ADR6034 receptacle, welders, pumps, and construction applications
• Color: Metallic
• Dimensions: 7.81 in L x 3.81 in W
• Frequency Rating: 50/400 Hz
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 4
• Number of Wires: 3
• Temperature Rating: -40 to 225 deg F
• Voltage Rating: 250/600 VAC/VDC
