Emerson A-75 A-75 GEDNEY BUSHING 3/4 W/THREADS

Product Description

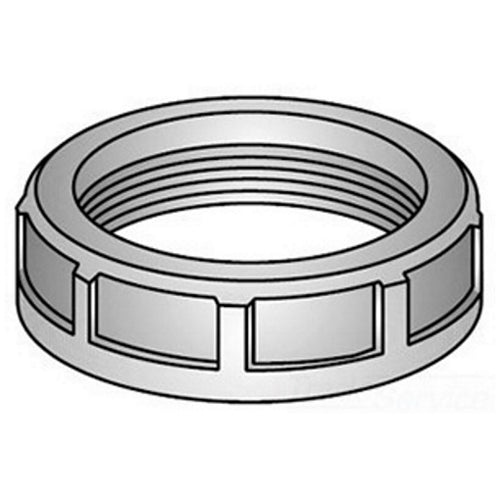

The Emerson A-75 is a conduit bushing designed for use with threaded rigid conduit and intermediate metal conduit (IMC). This non-grounding type A bushing is made from high-impact phenolic material and is suitable for insulated applications. It has an outer diameter of one and three-eighths inches and a width of one-half inch. Its temperature rating is up to three hundred two degrees Fahrenheit.

• Used to protect wires and cables at entry points
• Compatible with both metallic and nonmetallic conduits
• UL rated for high impact and temperature stability

Product Highlights

This bushing helps to ensure that wiring is safely protected while maintaining compliance with electrical standards.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• Manufacturer Part Number: A-75

Technical Specifications

• Type: Type A Non-Grounding
• Color: Black
• Material: Phenolic
• Dimensions: 1-3/8 in OD x 1/2 in W
• Trade Size: 3/4 in
• Application: For threaded rigid conduit and IMC
• Temperature Rating: 302 deg F
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA 11584, UL File No. E11853
• Insulated/Non-Insulated: Insulated
