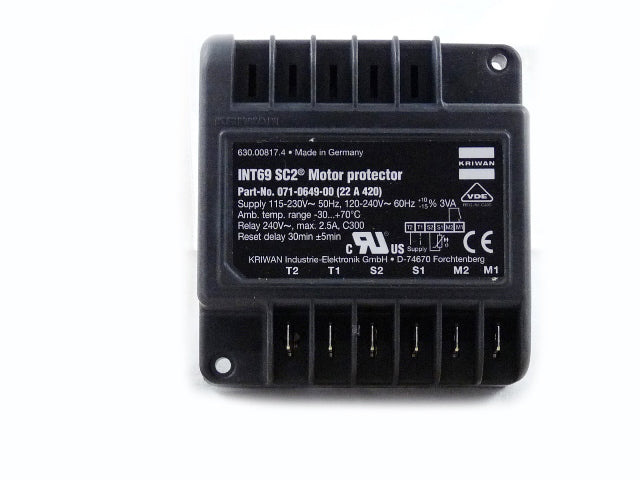

Emerson 998-0520-00 Module Kit 120-240V REPLACEMENT 071-0615-00

Product Description

The EMERSON 998-0520-00 Module Kit is a motor protector with an electrical rating of 115/230V or 120/240V, 50/60 Hz, and 3VA. It has a -30 to +70°C ambient temperature range with a 30-minute reset delay. The unit is suitable for compressor applications to cut off motor operation when the temperature gets too high or when a short circuit occurs to prevent damage.

• Electrical rating of 115/230V or 120/240V, 50/60 Hz, and 3VA
• Ambient temperature range: -30 to +70°C
• 30-minute reset delay

Product Highlights

The EMERSON 998-0520-00 motor protector safeguards HVAC systems by preventing motor damage from heat or electrical failure. Compatible with multiple HVAC applications, it monitors temperature and current levels to improve motor lifespan and reduce repair costs.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: 998-0520-00

Technical Specifications

• Frequency: 50/60 Hz
• Power Consumption: 3 VA
• Voltage: 115/230V or 120/240V
• Ambient Temperature Range: -30 to +70°C
• Reset Delay: 30-minute
• Mounting: Screw Mounting
• Housing Material: PA glass-fibre-reinforced
• Connection Type: 6.3mm flat plugs
• Protection Class: IP00
• Approvals: CE-marked, VDE-certified
• Power Source: Electric
• Phase: 1PH
• Height: 2.8"
• Width: 2.8"
• Length: 6"
