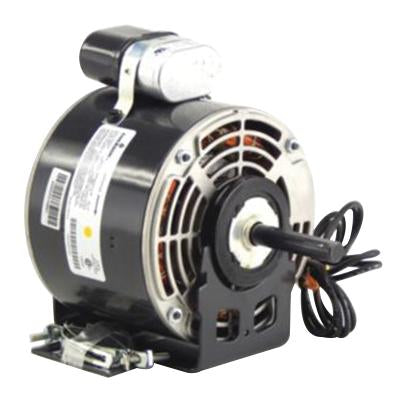

Emerson 950-0250-00 Fan Motor, 1/4 hp 208-230V 1625 RPM 1/2 inches Shaft w/ Base Capacitor

Product Description

The EMERSON 950-0250-00 fan motor is a 1/4 hp motor operating at 208-230V and 1625 RPM, featuring a 1/2" shaft and base capacitor. This Copeland condenser fan motor has a resilient base mounting and an open air over motor enclosure. It is designed for condenser units and various industrial equipment requiring efficient fan motor operation.

• Operates at 208-230V and 1625 RPM
• Features a 1/2" shaft and base capacitor
• Designed with a resilient mount to dampen vibrations and noise

Product Highlights

This Copeland fan motor delivers enhanced performance for industrial applications with robust construction and precise operation.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: 950-0250-00

Technical Specifications

• Amperage Rating: 1.5 A
• Bearing Type: Sleeve
• Frame Size: 48
• Frequency Rating: 50 Hz, 60 Hz
• HP Rating: 1/4 hp
• Motor Enclosure Type: Open Air Over
• Mounting Type: Resilient Base
• Number of Speeds: 1
• Phase: 1 ph
• Rotation Type: Counter-Clockwise Shaft End
• Shaft Size: 1/2 in Dia x 3-7/8 in L
• Speed Rating: 1625 rpm
• Voltage Rating: 230 VAC
• Brand: Copeland
