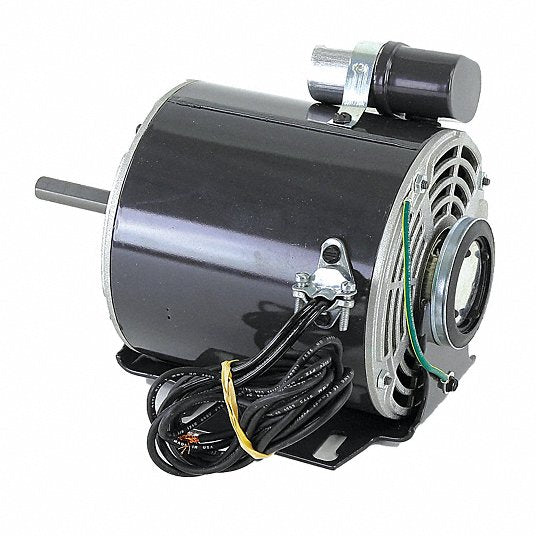

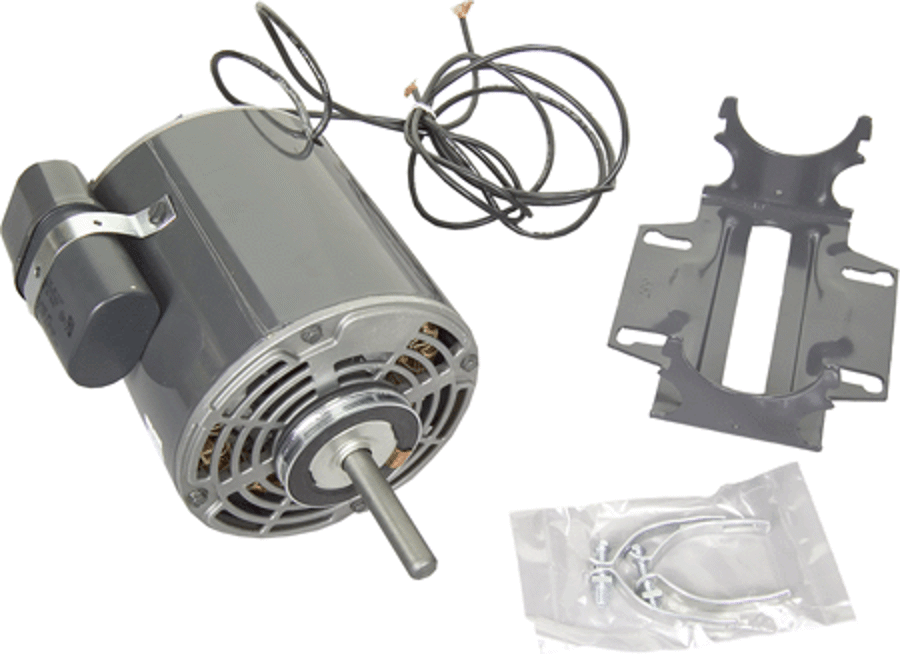

Emerson 950-0248-00 Fan Motor, 1/2 hp 208/230V 1100 rpm 1/2 inches Shaft Copeland OEM

Product Description

The EMERSON 950-0248-00 is a fan motor with 1/2 hp, operating at 208/230V and 1100 rpm, featuring a 1/2" shaft, and is a Copeland OEM replacement. This HVAC AC motor matches the equipment's existing motor from the original manufacturer to ensure consistent performance and correct installation. It is compatible with Copeland equipment.

• OEM replacement HVAC AC motor
• Matches equipment's existing motor
• Ensures consistent performance
• Correct installation

Product Highlights

This condenser fan motor ensures consistent performance and correct installation, designed as a direct replacement for Copeland units.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: 950-0248-00
• Country of Origin: USA

Technical Specifications

• Brand: COPELAND
• Manufacturer Part Number: 950-0248-00
• Product Type: Condenser Fan Motor
• Compatible Brand: Copeland
• Phase: Single
• Motor Design: Permanent Split Capacitor
• Nameplate Horsepower @ 60 Hz: 1/2 hp
• Nameplate RPM @ 60 Hz: 1,100 RPM
• Nameplate Voltage @ 60 Hz: 208-230V AC
• Frame Size: 48Y
• Full Load Current @ 60 Hz: 4.1 A
• Shaft Diameter: 1/2 in
• Motor Enclosure Type: Totally Enclosed
• Number of Speeds: 1
• Rotation Type: Counter-Clockwise Shaft End
• Shaft Size: 1/2 in Dia
• Speed Rating: 1140 rpm
• Voltage Rating: 208 to 230 V
• HP Rating: 1/2 hp
