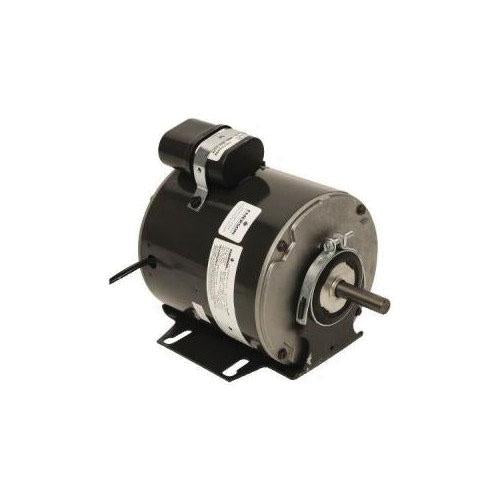

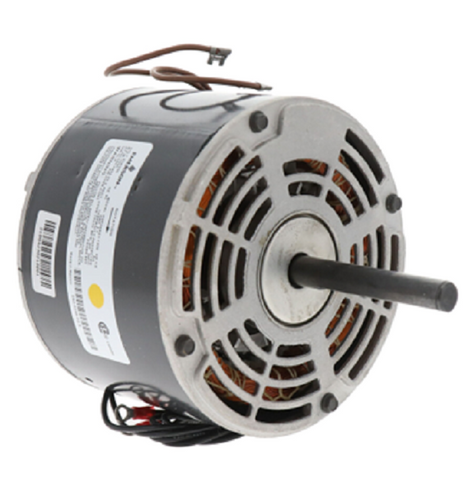

Emerson 950-0238-00 Fan Motor, 1/4 hp 230V 1625 RPM 1/2 inches Shaft

Product Description

The EMERSON 950-0238-00 Fan Motor is a 1/4 hp motor operating at 230V and 1625 RPM with a 1/2" shaft. Designed for industrial and commercial applications, this motor delivers efficient air circulation. It operates at 60 Hertz frequency and is suitable for use with condensers.

• Operates at 208 to 230 V
• Features a 5 uF capacitor at 370 VAC
• Designed for use in condensers

Product Highlights

This Copeland fan motor is engineered for condensers and other equipment requiring efficient air circulation. Its high-quality construction ensures extended service life and minimal maintenance requirements.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: 950-0238-00

Technical Specifications

• Frame Size: 48Y
• Frequency Rating: 60 Hz
• HP Rating: 1/4 hp
• Phase: Single Phase (1Ph)
• Rotation Type: CWLE
• Shaft Size: 1/2 in Dia
• Speed Rating: 1625 rpm
• Suitable For Use With: Condensers
• Voltage Rating: 208 to 230 V
