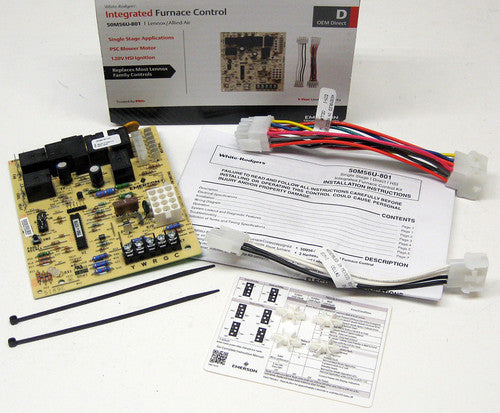

Emerson 94W83 Furnace Control Board Replacement 50M56U-801

Product Description

The EMERSON 94W83 is a furnace control board that replaces the White Rodgers 50M56U-801. This integrated HIS furnace control board manages the gas valve, ignitor, blower, inducer, humidifier (120V), and air cleaner. It features a diagnostic LED with fault recall and mounts using OEM standoff locations. It is agency approved and includes an adapter harness for application flexibility.

• 120V Ignitor Output
• Heat, Cool, Fan Only PSC Blower Speeds
• Diagnostic LED with Fault Recall

Product Highlights

Controls gas valve, ignitor, blower, inducer, humidifier, and air cleaner. Features diagnostic LED and OEM mounting.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: 94W83

Technical Specifications

• Part Number: 50M56U-801
• Controls: Gas Valve, Ignitor, Blower, Inducer, Humidifier (120V), and Air Cleaner
• Ignitor Output: 120V
• Blower Speeds: Heat, Cool, Fan Only PSC
• Heat Delay- To-Fan-On: 30 / 45 seconds
• Heat Delay- To-Fan-Off: 60 / 90 / 120 / 180 seconds
• Cool Delay- To-Fan-On: 2 seconds
• Cool Delay- To-Fan-Off: 2 / 60 seconds
