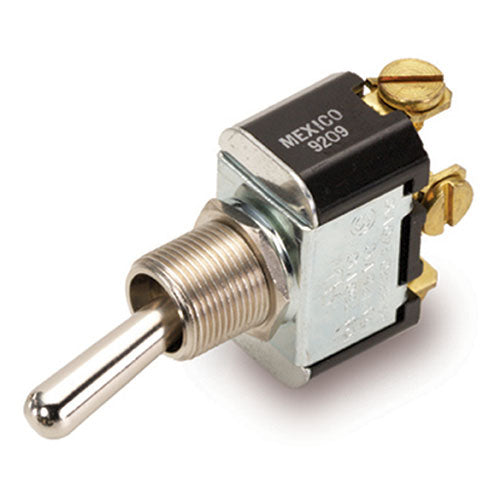

Emerson 900001N MCGILL TOGGLE SWITCH SPST 125/250 VAC

Product Description

Emerson 900001N MCGILL Toggle Switch is designed for various applications including marine and industrial control systems. This single pole toggle switch operates at a voltage rating of one hundred twenty-five to two hundred fifty volts AC, with an amperage rating of twenty to twelve amps. The robust construction offers durability and reliability for low voltage DC applications.

• Single pole, single throw (SPST) design.
• Rated for both AC and low voltage DC use.
• Includes a phenolic body for heat resistance.

Product Highlights

The Emerson 900001N switch features a toggle actuator with screw terminals, making installation straightforward. It is ideal for use in food service, generator, and office automation fields.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UPC: 03628300147

Technical Specifications

• Voltage Rating: 125/250 VAC
• Amperage Rating: 20/12 A
• Power Rating: 1 hp
• Dimensions: 1.13 in L x 0.63 in W x 2.18 in H
• Material: Phenolic
• Number of Poles: 1
• Contact Configuration: SPST
• Series: 90 Series
