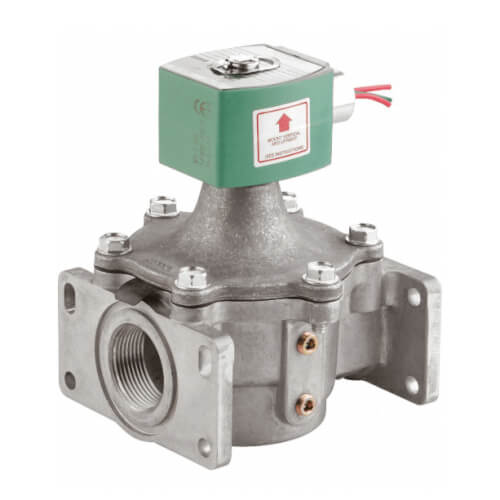

ASCO 8214G261-24VDC NPT Normally Closed Solenoid Valve 1-1/4 Inch Replacement 8214G261-24VDC

Product Description

The ASCO 8214G261-24VDC is a robust solenoid valve designed for efficient control of fuel gas in a variety of commercial and industrial settings. Its unique aluminum body and NEMA 4X rating ensure long-lasting performance and reliability.

• Equipped with a unique double disc design for redundant sealing and leak-proof operation.
• Features visual indicators for open and shut positions and an optional proof of closure switch.
• Silicon-free construction ideal for sensitive environments.

Product Highlights

This solenoid valve is perfect for on-off control of fuel gas, offering quick installation and easy service thanks to its optional flange adapters.

Product Information

Standard Information

• Brand: ASC will be used. O
• MPN: 8214G261-24VDC

Technical Specifications

• Size: 1-1/4 inch NPT
• Capacity (BTU): 1,725,500
• Maximum Temperature: 125 degrees Fahrenheit
• Body Pattern: 2-Way
• Flow Capacity (Cv): 32
• Weight: 6.01 pounds
