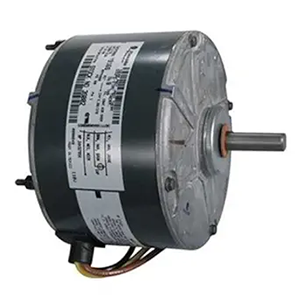

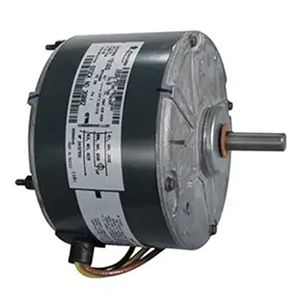

Emerson 61W89 Condenser Fan Motor 1/4 Hp 208/230V

Product Description

The EMERSON 61W89 is a condenser fan motor rated at 1/4 horsepower and designed for 208/230 volt single-phase applications. Built to a 48 frame standard, this motor is a direct-fit replacement used in residential and light commercial HVAC condensing units. It moves air across the condenser coil to reject heat, keeping the refrigerant circuit operating within design parameters. Licensed HVAC technicians typically handle installation and replacement. The 48 frame designation ensures dimensional consistency with a wide range of OEM condenser fan assemblies, making field replacement straightforward for experienced technicians.

This motor is suited for outdoor condensing unit applications where a 1/4 HP, 208/230 volt motor is specified. It fits into standard condenser fan deck configurations using a 48 frame mount. Typical install scenarios include seasonal changeouts on aging split-system air conditioners and heat pumps, as well as warranty and non-warranty field repairs on residential condensing units. The dual-voltage rating of 208/230 volts accommodates both nominal supply voltages commonly found in residential and light commercial service environments.

Key Features

• 1/4 HP output rated for condenser fan duty cycles
• 208/230 volt dual-voltage design covers common residential and light commercial supply voltages
• 48 frame construction provides dimensional compatibility with standard condenser fan decks
• OEM-style replacement profile simplifies direct-swap field installation

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial split-system air conditioners and heat pumps requiring a 1/4 HP, 208/230 volt, 48 frame motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the condensing unit before removing the existing motor or handling wiring. Verify supply voltage, rotation direction, and shaft size match the application requirements before energizing. Follow all applicable NEC guidelines for motor replacement and outdoor disconnect requirements.

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 208/230 volts
• Frame: 48
• Motor Type: Condenser Fan Motor

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: 61W89
