Emerson 5441h Nidec Motor 1/4-1/6hp 1075RPM

Product Description

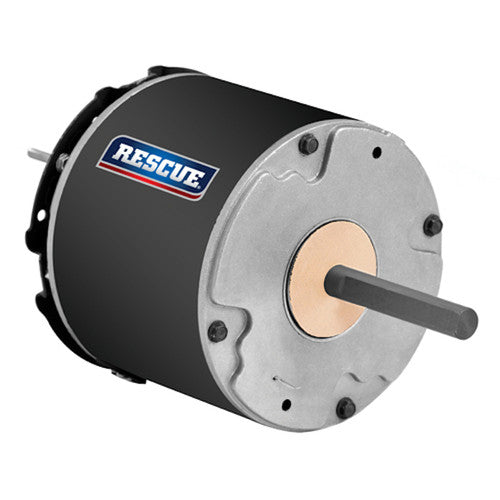

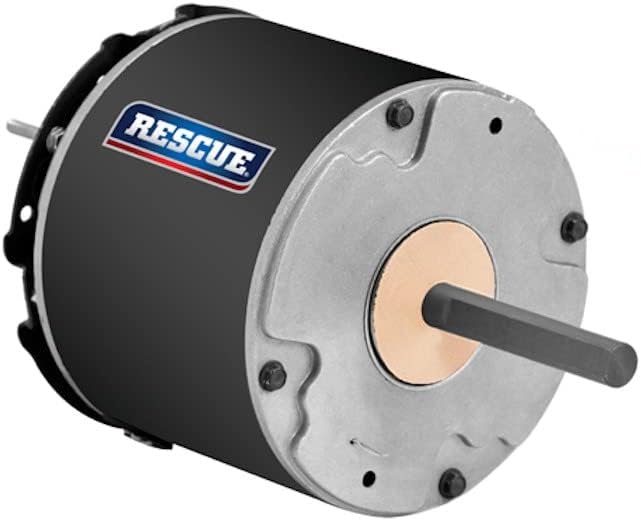

The EMERSON 5441h Nidec motor is a 1/4-1/6 hp, 1075 RPM, 1-speed motor operating at 208-230V and 1.5 amps. It features a shaft size of 1/2" x 3.0" with reversible rotation and a 5.0" diameter. Designed with ball bearings and includes a 5 MFD capacitor. Suitable for outside A.C. condenser fan motor applications.

• Reversible rotation for flexible application.
• Automatic overload protection ensures operational safety.
• Totally enclosed air over enclosure for durability.

Product Highlights

Durable condenser fan motor with overload protection and reversible rotation.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: 5441h

Technical Specifications

• Brand: Nidec
• Speed: 1075 RPM
• Voltage: 230 Volts
• Rotation: Reversible Rotation
• Bearings: Ball Bearing
• Horsepower: 1/4 hp
• Amps: 1.5 amps
• Shaft: 1/2" x 3.0"
• Diameter: 5.0"
• Motor Case Length: 5.5"
• Mount: Stud Mount for 4.3, 4.4, and 4.6 bolt circles
• Capacitor: 5MFD/370V
• Enclosure: Totally Enclosed Air Over Enclosure
• Insulation: Class B Insulation
• Ambient Temperature: 70C
• Leads: 36"
• Hertz: 60 Hertz
• Application: Outside A.C. Condenser fan motors
• HP: 1/4-1/6
• FRAME: 42Y
• VOLTS: 208-230
• AMPS: 1.5
• SPEED: Single Speed
• ROTATION: CCWLE
• BEARING: Ball Bearing
• MOUNT: Stud Mount
• CAPACITOR: Permanent Split Capacitor
• SHAFT: 3" X 1/2" FLAT
