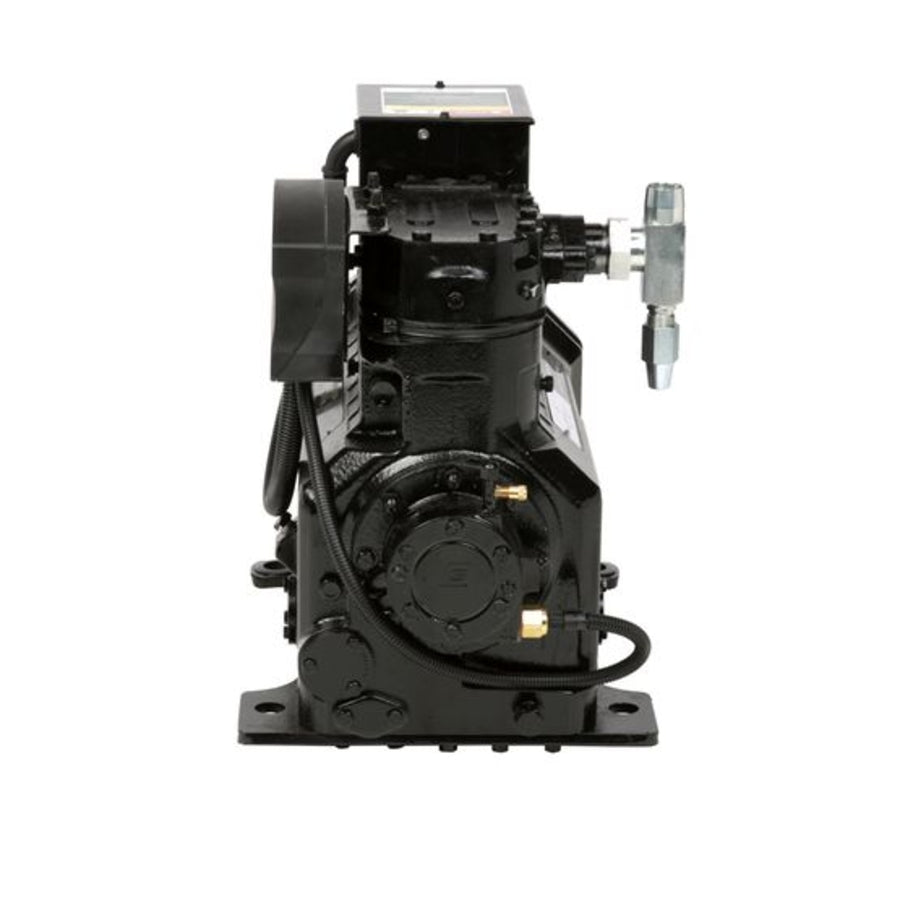

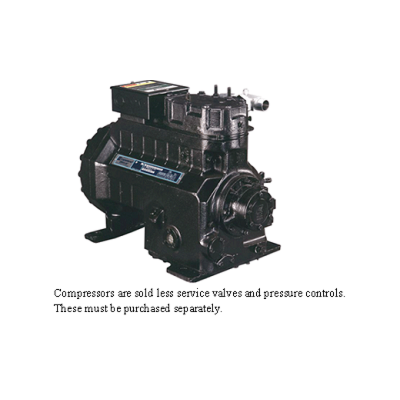

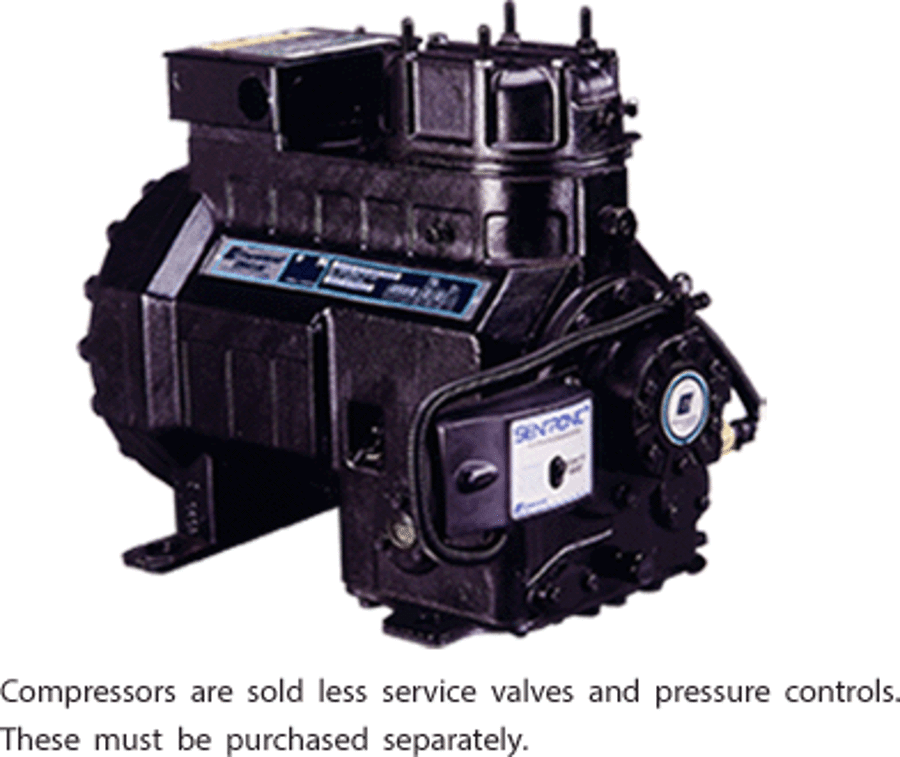

Emerson 3DS3R17ME-TFC-800 Compressor, 208-230/3/60 1-1/8 inches S x 1-5/8 inches S

Product Description

The EMERSON 3DS3R17ME-TFC-800 is a semi-hermetic discus compressor designed for commercial refrigeration. This 3-phase compressor is compatible with 208/230 voltage at 60 Hz. It features a delta reed valve design and is comparable to 9R models. It is suitable for A/C and medium temperature applications using refrigerants like R22, R404A, and R502.

• 3 cylinder compressor
• Comparable to 9R models
• Wide range: 5 to 15 Hp

Product Highlights

The EMERSON 3DS3R17ME-TFC-800 compressor is ideal for refrigeration applications requiring a semi-hermetic compressor.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: 3DS3R17ME-TFC-800

Technical Specifications

• Type: Compressor
• Phase: 3
• Voltage: 208/230V
• Frequency: 60 Hz
• Application: A/C, Medium Temp
• Refrigerant: R22, R404A, R407A, R407C, R407F, R448A, R449A, R502, R507
• Series-Brand: Copeland
• Compression Type: Semi-Hermetic Discus
• Liquid Line Size: 1-1/8"S
• Suction Line Size: 1-5/8"S
• Body Type: 3D
• Height: 19.18"
• Length: 25.81
• Width: 15.17
• Mounting Dimensions: 15" x 12"
• Temperature Rating: UL High
• Vendor Name: Copeland
• Vendor Part Number: 3DS3R17ME-TFC-800
• Alternate Number: 3DS3A150ETFC
• Application by Refrigerant: A/C - R22, Medium Temp - R22, Medium Temp - R404A, A/C - R407A, Medium Temp - R407A, A/C - R407C, Medium Temp - R407C, Medium Temp - R407F, Medium Temp - R448A, Medium Temp - R449A, Medium Temp - R502, Medium Temp - R507
• Capacity (BTUH): 194000
• Horsepower: 15
• Oil: Polyol Ester
• Rated Load Amps: 59.6
