Emerson 3DF3F40KE-TFC-800 Compressor, 208-230/3/60 1-1/8 inches S x 1-3/8 inches S Semi-Hermetic Discus 67.8 MBH R407C 3D

Product Description

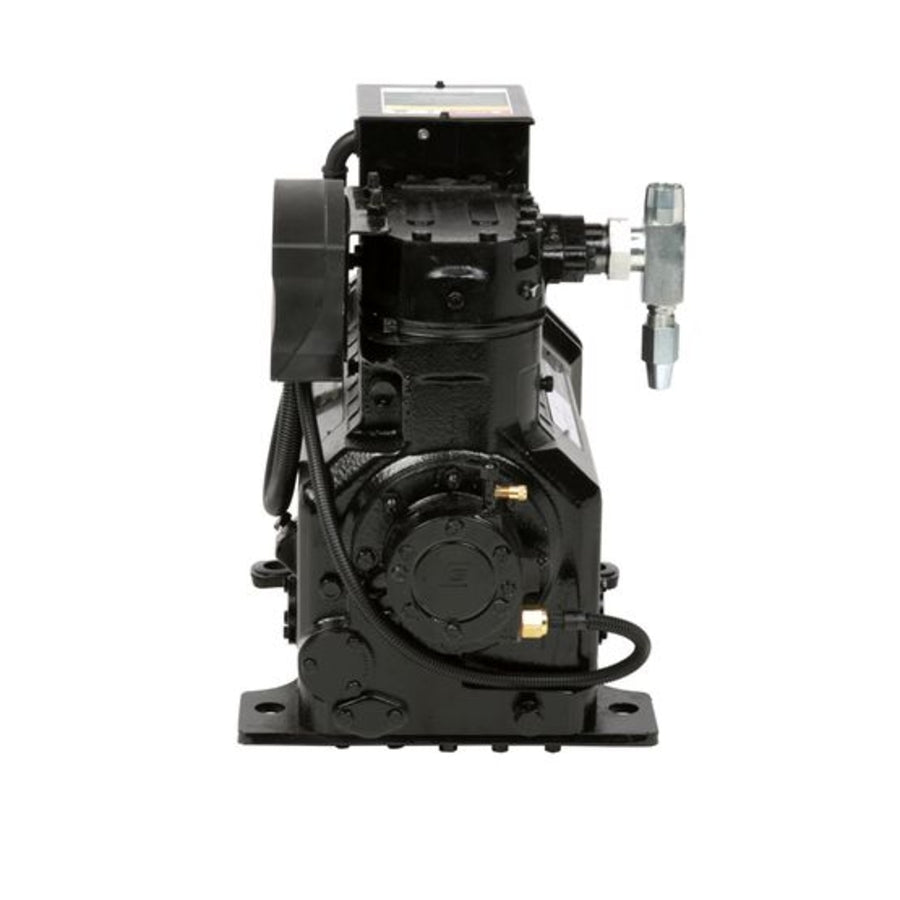

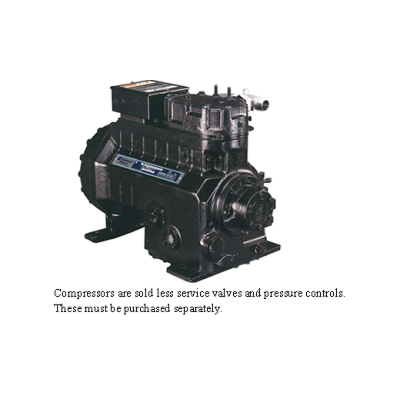

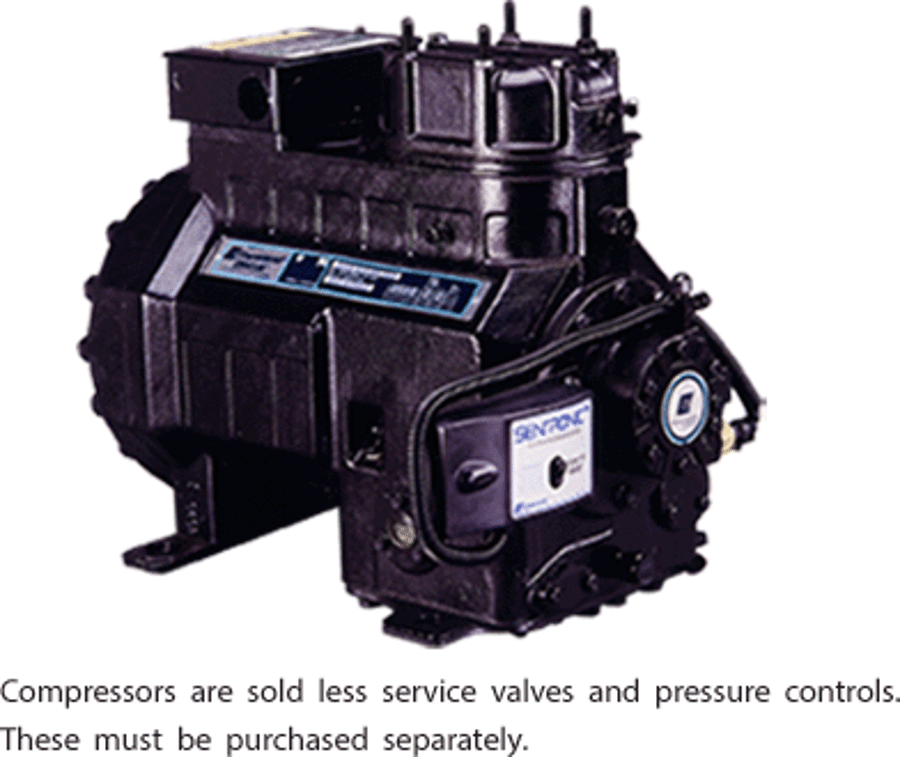

The EMERSON 3DF3F40KE-TFC-800 is a compressor with 208-230/3/60 voltage and frequency of 60 Hz. Designed for refrigeration applications, this semi-hermetic discus compressor utilizes R407C refrigerant. It features a liquid line size of 1-1/8" and a suction line size of 1-3/8".

• Semi-Hermetic Discus compressor for commercial refrigeration
• Includes oil, protector, and a complete gasket set
• Designed for refrigeration applications

Product Highlights

The 3DF3F40KE-TFC-800 is ideal for refrigeration applications requiring a semi-hermetic discus compressor.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: 3DF3F40KE-TFC-800

Technical Specifications

• Type: Compressor
• Phase: 3
• Voltage: 208/230V
• Frequency: 60 Hz
• Application: Refrigeration
• Refrigerant: R407C
• Series-Brand: Copeland
• Compression Type: Semi-Hermetic Discus
• Liquid Line Size: 1-1/8"
• Suction Line Size: 1-3/8"
• Body Type: 3D
• Height: 19.18"
• Length: 27.3"
• Mounting Dimensions: 15" x 12"
• Temperature Rating: High
