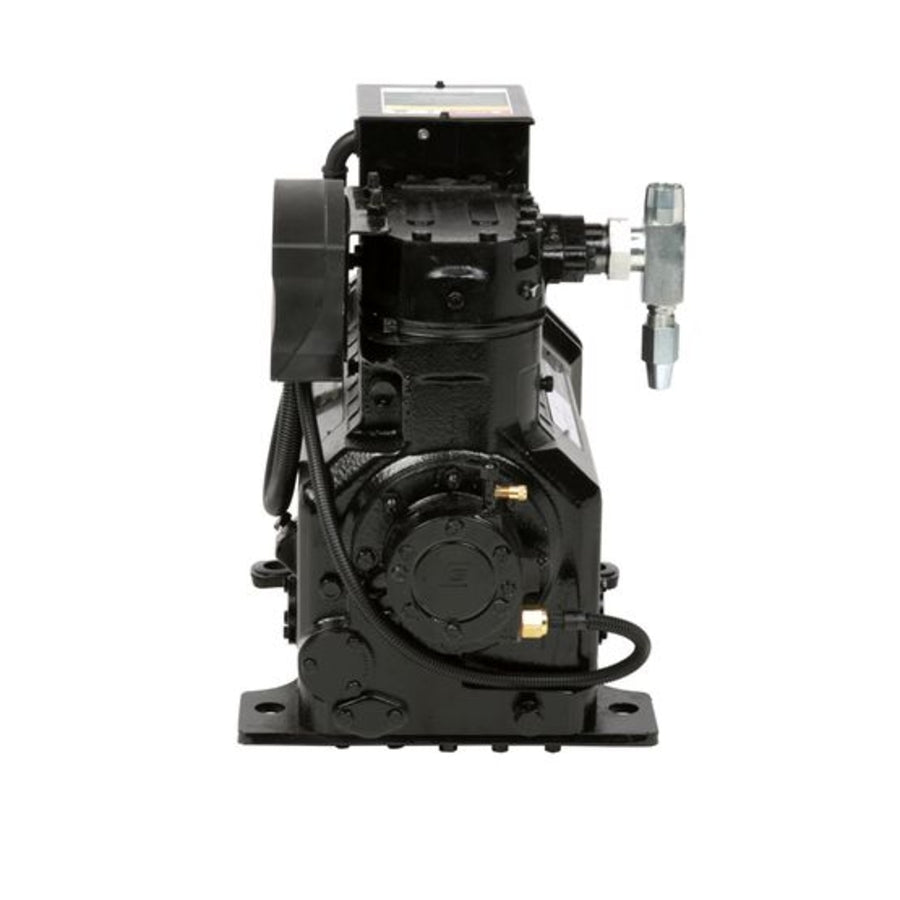

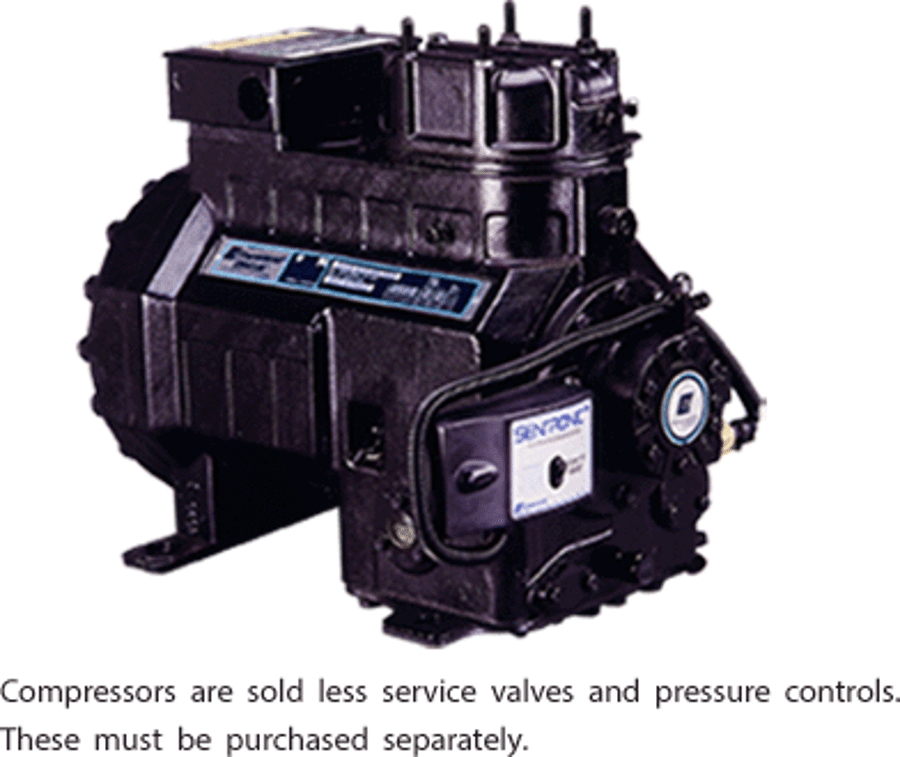

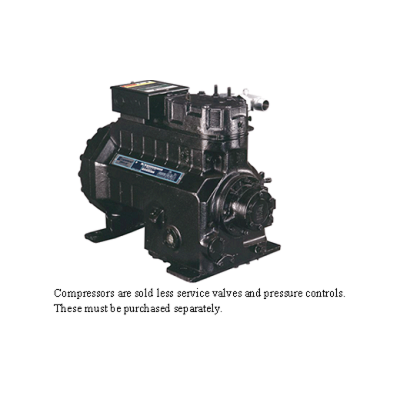

Emerson 3DB3F33KE-TFC-800 Compressor 208-230/3/60 1-1/8 inches S x 1-3/8 inches S Semi-Hermetic Discus R407C 3D

Product Description

The EMERSON 3DB3F33KE-TFC-800 compressor is a semi-hermetic discus compressor designed for HVAC applications. It supports R407C refrigerant and operates on 208/230 voltage, 3 phase power at 60 Hz. This compressor features a 1-1/8" suction line size and a 1-3/8" liquid line size. It is designed for refrigeration applications.

• Semi-Hermetic Discus design
• Suitable for HVAC applications
• Operates on 208/230V, 3-phase power at 60 Hz

Product Highlights

The EMERSON 3DB3F33KE-TFC-800 is a semi-hermetic discus compressor for HVAC applications, operating on 208/230 voltage, 3 phase power at 60 Hz and using R407C refrigerant.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: 3DB3F33KE-TFC-800

Technical Specifications

• Type: Compressor
• Phase: 3
• Voltage: 208/230
• Frequency: 60 Hz
• Application: HVAC
• Refrigerant: R407C
• Series-Brand: Copeland
• Compression Type: Semi-Hermetic Discus
• Liquid Line Size: 1-1/8"
• Suction Line Size: 1-3/8"
• Mounting Dimensions: 15" x 12"
• Body Type: 3D
• Dimensions: 25.86" x 14.92" x 19.13"
• Height: 19.13"
• Length: 25.86"
• Temperature Rating: High
