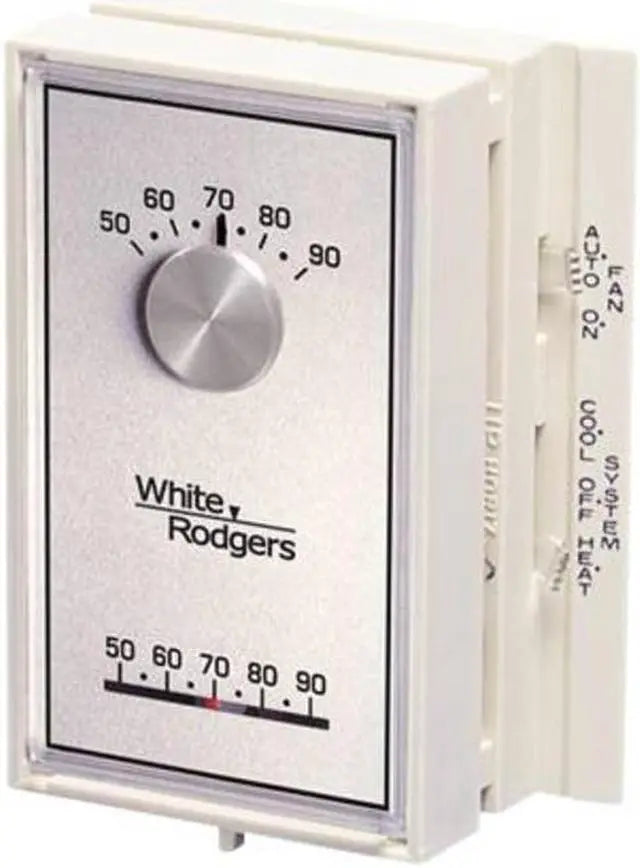

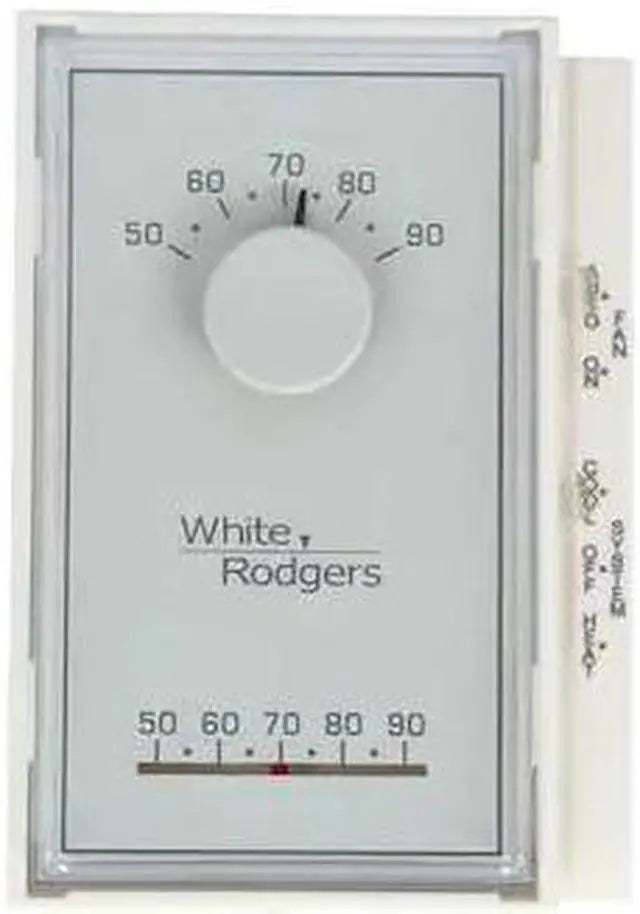

Emerson 1E56N-444 Low V Mechanical Thermostat 50 to 90 Degree F Replacement MPN

Product Description

The Emerson CLIMATE TECHNOLOGIES 1E56N-444 is a mechanical thermostat designed to replace older models with modern styling and improved functionality. This thermostat includes enclosed contacts for enhanced reliability and accuracy in heating and cooling systems. It is suitable for 24V, 3-wire zone single-stage and millivolt applications, and supports heat-cool, heat-only, or cool-only configurations. The control range of fifty to ninety degrees Fahrenheit allows for precise temperature adjustments.

• Replaces many older thermostat models.
• Enclosed contacts ensure reliable and accurate temperature control.
• Control range from fifty to ninety degrees Fahrenheit for exact settings.

Product Highlights

This thermostat is user-friendly and connects easily to existing systems.

Product Information

Standard Information

• Brand: Emerson Climate Technologies
• Model Name: 1E56N-444

Technical Specifications

• Controller Type: Hand Control
• Special Feature: Low Voltage
• Specific Uses For Product: Air Conditioner, Boiler, Furnace, Heat Pump
• Temperature Control Type: Mechanical
• Connectivity Technology: Wired
• Included Components: Install Guide, Thermostat
• Power Source: Corded Electric
• Voltage: 20 to 30V AC, 750mV Compatible
• Shape: Rectangular
• Display Type: Manual
• Control Type: Dial Control
• Control Method: Touch
• Mounting Type: Wall Mount
• Height: 4.5 inches
• Width: 3.25 inches
• Depth: 1.625 inches
• Control Range: 50 to 90 degrees Fahrenheit
• Features: Mercury Free
• For Use With: Heating, Cooling, Heat Pump without Auxiliary Heat, Millivolt, 3-wire Zone Valve
