Emberglow EWVF36 36 in Vent Free Firebox Flush Face

Product Description

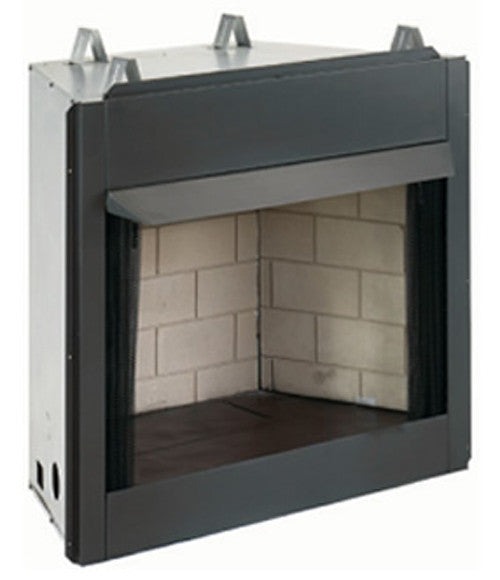

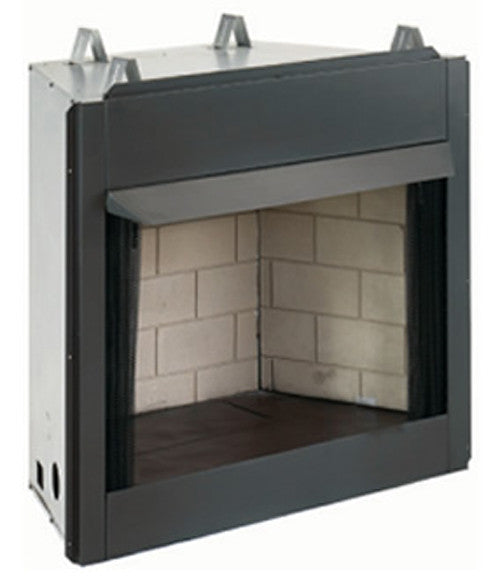

The EMBERGLOW EWVF36 is a 36-inch vent-free firebox designed for residential fireplace installations where direct venting is not available or desired. It ships with a refractory brick liner on the back and sides, a flush clean-face design, a charcoal powder-coated canopy, and mesh draw screens. The firebox measures 41.75 inches across the front opening, 23.5 inches at the rear width, 37.25 inches tall, and 20 inches deep. A compatible vent-free burner and log set are required to complete the installation and are sold separately. A blower is available as an optional add-on. Installation is performed by a licensed gas technician.

The EWVF36 suits single-sided fireplace openings in residential living spaces, dens, or master suites. It accommodates corner or flat wall installation configurations, giving flexibility for new construction and retrofit projects. Gas line knockouts are provided on both sides of the firebox for convenient rough-in access. The unit is compatible with Everwarm vent-free burners, including the EWPO2430PM, EWPO2430NM, EWPO2430PV, and EWPO2430NV models in either liquid propane or natural gas. Everwarm log sets in 18-inch, 24-inch, and 30-inch sizes are all compatible with this firebox when paired with an Everwarm burner. The flush face and large viewing area keep visual focus on the log set and flame.

Key Features

• 36-inch nominal vent-free firebox with flush clean-face design and charcoal powder-coated canopy
• Refractory masonry brick liner included on back and side walls
• Mesh draw screens included for safety and appearance
• Gas line knockouts on both sides for flexible rough-in
• Corner or flat wall installation compatible
• Accepts manual or millivolt vent-free burners in liquid propane or natural gas

Compatibility

Compatible with Everwarm vent-free burners EWPO2430PM and EWPO2430NM (manual valve, liquid propane or natural gas) and EWPO2430PV and EWPO2430NV (millivolt valve, liquid propane or natural gas). Accepts Everwarm log sets in 18-inch, 24-inch, and 30-inch sizes. Also accepts any certified vent-free burner and log set that meets the minimum firebox dimension requirements; confirm clearances before purchasing non-Everwarm components. Not available for shipment to the state of California.

Installation Notes

Installation must be performed by a licensed gas technician in accordance with local codes and the appliance manufacturer instructions. Shut off the gas supply at the main valve before making any connections to the firebox. Check local regulations, as some jurisdictions require inspection after installation of gas appliances. This firebox is rated as a supplemental heat source only and should not be used as a primary heating system.

Technical Specifications

• Nominal Firebox Size: 36 inches
• Front Width: 41.75 inches
• Rear Width: 23.5 inches
• Height: 37.25 inches
• Depth: 20 inches
• Installation Type: Single Sided, Standard Insert
• Face Style: Clean / Flush Face
• Liner: Refractory Brick Liner Included
• Fuel Type: Burner Dependent (Liquid Propane or Natural Gas)
• Burner: Required, sold separately (manual or millivolt)
• Blower: Optional, sold separately
• Finish: Charcoal Powder Coat

Standard Information

• Brand: EMBERGLOW
• Manufacturer Part Number: EWVF36
