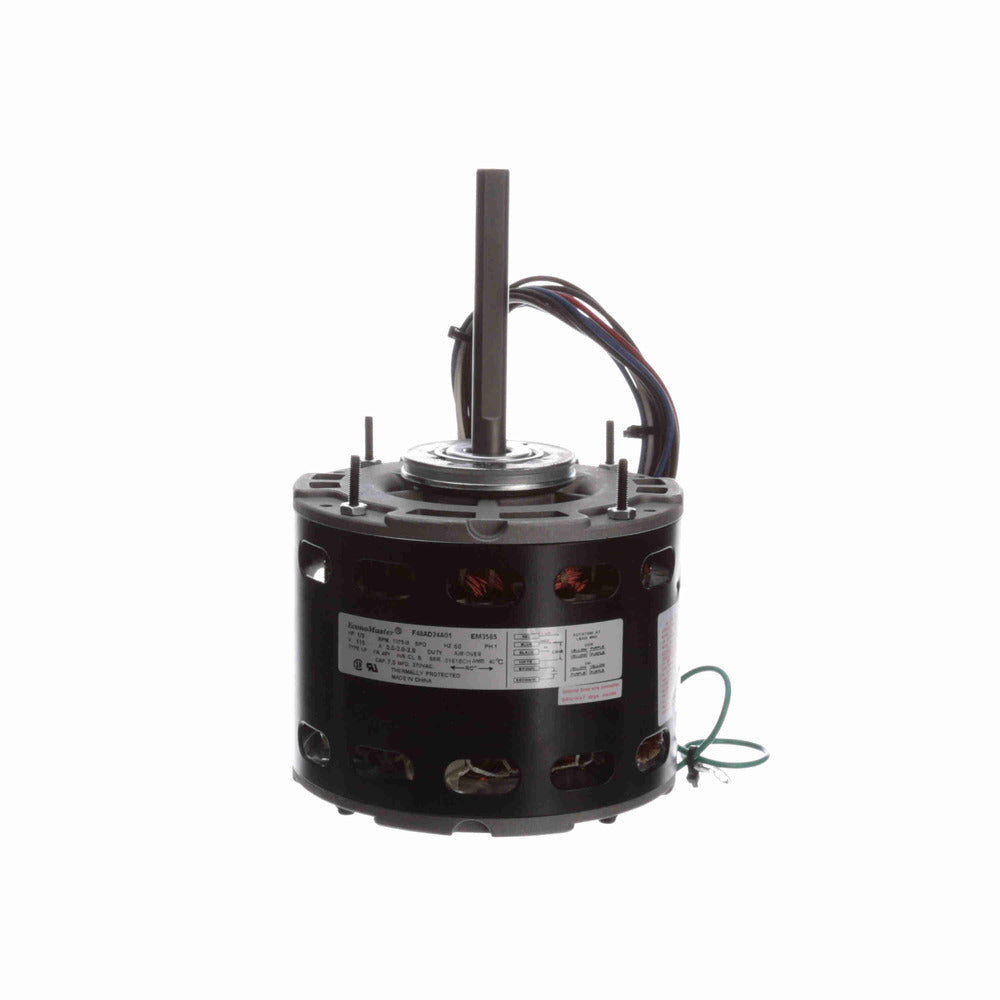

Century EM3585 Fan and Blower Motor 1/3 HP 115 VAC 1075 RPM 48Y

Product Description

The Century EM3585 Fan and Blower Motor is built for HVAC applications. This motor operates at 1/3 HP and 115 VAC with a frequency of 60 Hz. It supports a maximum speed of 1075 RPM and features a reversible flat shaft. This motor includes class B insulation and a rolled steel frame for durability.

• 1/3 HP power rating
• 115 VAC, 60 Hz operating voltage
• Rolled steel frame with class B insulation

Product Highlights

The Century EM3585 is suitable for direct drive fan and blower applications. It is designed with a NEMA 48Y frame and provides enhanced resilience with its ball bearings on the drive end and opposite drive end. Featuring automatic thermal protection, this motor ensures safe operation.

Product Information

Standard Information

• Brand: Century Motors
• MPN: EM3585
• Power Rating: 1/3 HP
• Voltage Rating: 115 VAC
• Frequency Rating: 60 Hz

Technical Specifications

• Frame Size: 48Y
• Speed: 1075 RPM
• Enclosure Type: Open Air-Over
• Insulation Class: B
• Mounting: Extended Stud
• Ambient Temperature Rating: 40 Degrees C
• Shaft Type: Flat
• Orientation: Horizontal
• Bearing Type: Ball (Drive End/Opposite Drive End)
• Weight: 13 lbs
