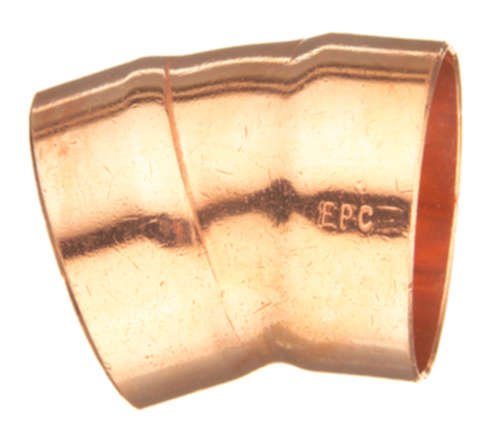

Elkhart Products WROT30811/2 Copper Dwv 22.5 Deg Elbow

Product Description

The ELKHART PRODUCTS WROT30811/2 is a wrought copper DWV 22.5-degree elbow designed for drain, waste, and vent piping systems in residential and light commercial plumbing. Manufactured from wrought copper with a solder-type C x C (cup-by-cup) connection, this fitting provides a reliable, leak-resistant joint when properly soldered. The 22.5-degree offset angle is used where a standard 45-degree or 90-degree elbow would not align with the run. Weighing 0.153 pounds, the fitting measures 1.98 inches in length, 1.96 inches in width, and 1.73 inches in height. Plumbers and pipefitters install this type of fitting as part of gravity-flow DWV systems where precise directional changes are required.

This fitting is sized at 1-1/2 inches by 1-1/2 inches, making it a common choice for lavatory drains, kitchen sink drain lines, and branch connections in residential DWV rough-in work. The wrought copper construction conforms to standard DWV fitting profiles and is suited for above-grade drain and vent applications. It is part of the Elkhart Products Model 308 product line within the WROT DWV series.

Key Features

• 22.5-degree elbow angle for precise directional offsets in DWV piping runs
• Wrought copper construction for consistent wall thickness and solderability
• C x C solder connection on both ends for standard sweat-solder installation
• 1-1/2 inches x 1-1/2 inches size fits common lavatory and sink drain applications
• Lightweight at 0.153 pounds with a compact profile

Compatibility

Designed as an OEM-style wrought copper DWV fitting for use in standard 1-1/2-inch copper drain, waste, and vent piping systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code and applicable local codes. Shut off the water supply and ensure the pipe is dry before soldering. Clean all mating surfaces with emery cloth and apply flux before applying heat. Do not apply excessive heat to the fitting, as overheating can damage the solder joint.

Technical Specifications

• Size: 1-1/2 inches x 1-1/2 inches
• Material: Copper (Wrought)
• Connection Type: C x C (Solder Cup)
• Fitting Angle: 22.5 degrees
• Product Line: WROT DWV
• Length: 1.98 inches
• Width: 1.96 inches
• Height: 1.73 inches
• Weight: 0.153 pounds

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: WROT30811/2
