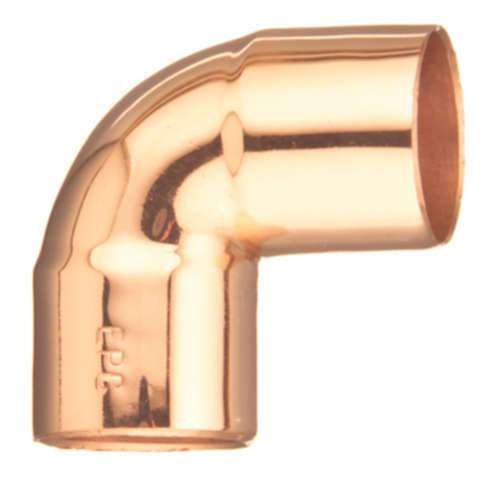

Elkhart Products WP7-12 Wrot Copper 90 Elbow 3/4 in

Product Description

The ELKHART PRODUCTS WP7-12 is a wrot copper 90-degree close rough elbow fitting designed for sweat-solder copper tube connections in residential and commercial plumbing systems. Sized for 3/4-inch copper tube (7/8-inch OD), it uses a C x C (copper-to-copper) connection type and is manufactured from wrot copper for consistent wall thickness and reliable solder joints. This fitting is installed by licensed plumbers and pipefitters in supply lines, drain configurations, and general water distribution piping where a 90-degree directional change is required. At 0.096 pounds, it is a compact, lightweight component suited for tight installations.

This elbow fitting is used in residential and light commercial plumbing applications wherever 3/4-inch copper tubing requires a square 90-degree turn. Typical installations include domestic hot and cold water supply lines, hydronic heating distribution, and in-wall rough-in configurations. The close rough pattern minimizes the center-to-end dimension, making it well suited for confined spaces and wall cavity work where fitting clearance is limited.

Key Features

• Wrot copper construction for uniform grain structure and strong, leak-resistant solder joints
• C x C connection accepts standard 3/4-inch copper tube on both ends for sweat soldering
• Close rough pattern reduces center-to-end dimension for use in tight or confined spaces
• Lightweight at 0.096 pounds, minimizing load on copper tubing runs
• Compatible with standard lead-free solder and flux per applicable plumbing codes

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4-inch copper tube systems using sweat-solder C x C connections in residential and commercial plumbing applications.

Installation Notes

Installation is performed by a licensed plumber following local plumbing codes and IPC requirements. Shut off the water supply and fully drain the line before cutting and fitting. Clean tube ends and fitting cups with emery cloth, apply lead-free flux, and sweat-solder using a propane or MAPP torch to achieve a full, even solder fill around the joint. Allow joints to cool completely before restoring water pressure and inspecting for leaks.

Technical Specifications

• Material: Wrot Copper
• Connection Type: C x C (Copper x Copper)
• Join Method: Solder (Sweat)
• Tube Size: 3/4 inch
• Tube OD: 7/8 inch
• Elbow Angle: 90 degrees
• Pattern: Close Rough
• Length: 1.79 inches
• Width: 1.79 inches
• Height: 0.97 inches
• Weight: 0.096 pounds
• UPC: 683264312883

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: WP7-12
