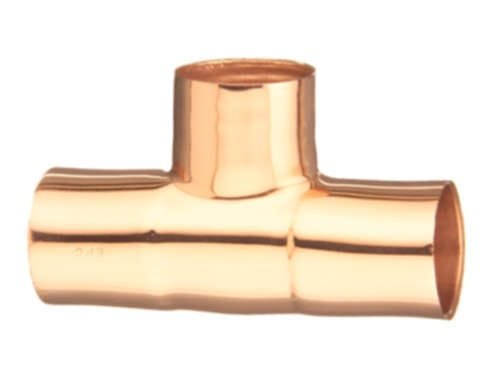

Elkhart Products TEE-114 Copper Tee 1-1/4 in Wrot

Product Description

The ELKHART PRODUCTS TEE-114 is a wrot copper pressure tee designed for sweat-solder connections in residential and commercial plumbing systems. Manufactured from wrot copper with a C x C x C (copper by copper by copper) end configuration, this tee accepts standard 1-1/4-inch copper tube on all three ports. At 0.397 pounds and compact overall dimensions, it fits cleanly into tight rough-in spaces without requiring additional adapters. Licensed plumbers and pipefitters use this fitting when branching a 1-1/4-inch supply or drain line. The wrot construction provides consistent wall thickness and clean socket depth for reliable solder joints that meet common pressure and temperature requirements in potable water and hydronic applications.

This tee is suited for 1-1/4-inch copper tube systems in residential water supply, light commercial plumbing, and hydronic heating distribution. Its all-sweat end connections make it a standard choice wherever a branch takeoff is needed on a main copper run. The equal-outlet C x C x C configuration allows flow in any of the three ports, giving installers flexibility in branch orientation during rough-in.

Key Features

• Wrot copper construction for consistent wall thickness and reliable solder joints
• C x C x C end connections accept standard 1-1/4-inch copper tube on all three ports
• Solder-type fitting for use in sweat-connection plumbing assemblies
• Lightweight at 0.397 pounds, suitable for overhead and concealed rough-in
• Compact profile: 2.50 x 3.60 x 1.48 inches overall

Compatibility

Designed as an OEM-style wrot copper pressure fitting compatible with standard 1-1/4-inch copper tube in sweat-solder plumbing assemblies.

Installation Notes

Installation is performed by a licensed plumber following local plumbing code and IPC requirements. Shut off the water supply and fully drain the affected line before cutting or soldering. Clean all tube ends and fitting sockets with emery cloth and apply flux before sweating; do not apply heat to a fitting with water present in the line. Follow all applicable code requirements for pressure testing after soldering is complete.

Technical Specifications

• Material: Copper (Wrot)
• Connection Type: C x C x C (Solder)
• Tube Size: 1-1/4 inches
• Length: 2.50 inches
• Width: 3.60 inches
• Height: 1.48 inches
• Weight: 0.397 pounds

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: TEE-114
