Elkhart Products STLSELL-58 90 Street Elbow Long Turn

Product Description

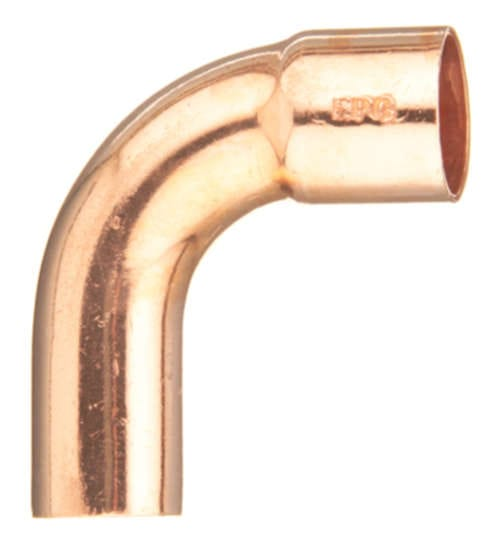

The ELKHART PRODUCTS STLSELL-58 is a 90-degree long-turn street elbow for copper tubing systems. It connects using a FTG x C (fitting-to-copper) solder joint configuration, making it compatible with standard sweat-connection workflows. Sized for 5/8-inch tube (3/4-inch OD ACR), this fitting is manufactured from wrot copper to meet the dimensional and pressure standards expected in commercial refrigeration, HVAC, and plumbing installations. The long-turn radius reduces turbulence and pressure drop compared to standard elbows, which matters in refrigerant and fluid lines where flow efficiency is critical.

This fitting is used in residential and light commercial HVAC, refrigeration piping, and plumbing applications where a 90-degree change of direction is needed with a street-end entry. The FTG x C connection allows the male fitting end to insert directly into another fitting socket, eliminating a short coupling section and saving space in tight installations. Licensed HVAC technicians, refrigeration mechanics, and plumbers use this fitting during new construction and service work on copper tubing systems.

Key Features

• Wrot copper construction for consistent wall thickness and reliable solder joints
• Long-turn sweep reduces pressure drop and turbulence in refrigerant and fluid lines
• FTG x C connection allows direct male-end insertion into adjoining fitting sockets
• Sized for 5/8-inch tube, 3/4-inch OD ACR applications
• Solder-type joint compatible with standard sweat-connection practice

Compatibility

Designed as an OEM-style replacement and standard-use fitting for copper tubing systems in HVAC, refrigeration, and plumbing applications requiring a 5/8-inch 90-degree long-turn street elbow with FTG x C solder connections.

Installation Notes

Installation is performed by licensed HVAC technicians, refrigeration mechanics, or plumbers using standard sweat-soldering tools including a torch, flux, and lead-free solder meeting applicable local plumbing and mechanical codes. Always recover refrigerant and isolate the system before cutting into refrigerant lines. Ensure tube ends are clean, deburred, and properly fluxed before joining. Follow applicable sections of the IFGC, IPC, or local mechanical code for brazed or soldered joint requirements.

Technical Specifications

• Size: 5/8 inches (3/4 inch OD ACR)
• Material: Wrot Copper
• Connection Type: FTG x C (Street x Sweat)
• Joint Type: Solder
• Angle: 90 degrees
• Turn Type: Long Turn
• Length: 2.26 inches
• Width: 1.96 inches
• Height: 0.83 inches
• Weight: 0.088 pounds
• UPC: 683264318106

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: STLSELL-58
