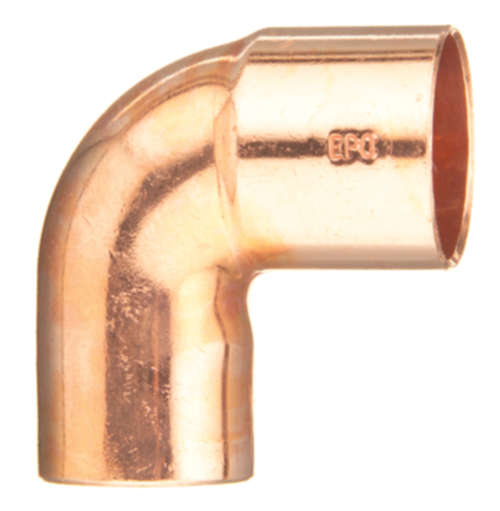

Elkhart Products STELL-114 90 Street Elbow 1-1/4 in Copper

Product Description

The ELKHART PRODUCTS STELL-114 is a 90-degree street elbow fitting designed for copper tubing systems in residential and commercial plumbing applications. Manufactured from wrot copper, this close-rough fitting uses a FTG x C (fitting-to-sweat) connection and is joined by soldering, making it a standard choice for directional changes in pressurized water lines. At 0.259 pounds, it is a compact, lightweight component suited for tight spaces where a precise 90-degree turn is required. Licensed plumbers and pipefitters install this type of fitting during rough-in and service work on domestic water supply systems.

This 1-1/4 inch street elbow is appropriate for residential hot and cold water supply piping, commercial plumbing rough-in, and hydronic system configurations where a sweat-connection 90-degree change of direction is needed. The FTG x C configuration allows one end to accept a copper tube end directly, eliminating the need for an additional fitting coupling in certain installation layouts, which is useful in confined chases and utility spaces.

Key Features

• Wrot copper construction for durability and corrosion resistance in potable water systems
• 90-degree street configuration with FTG x C ends for direct tube-to-fitting transitions
• Solder-joint connection type for reliable, permanent sealing
• 1-1/4 inch nominal size suitable for main supply and branch lines
• Compact close-rough profile fits confined installation spaces

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 1-1/4 inch wrot copper sweat piping systems in residential and commercial plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code and applicable local codes. Shut off and drain the water supply before cutting into any existing line. Clean both the tube end and fitting socket thoroughly and apply appropriate flux before soldering. Avoid applying excessive heat to the fitting, as overheating can damage the copper and compromise the joint.

Technical Specifications

• Material: Copper (Wrot)
• Connection Type: FTG x C (Sweat/Solder)
• Angle: 90 Degrees
• Nominal Size: 1-1/4 inches
• Length: 2.66 inches
• Width: 2.54 inches
• Height: 1.48 inches
• Weight: 0.259 pounds
• UPC: 683264314160

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: STELL-114
