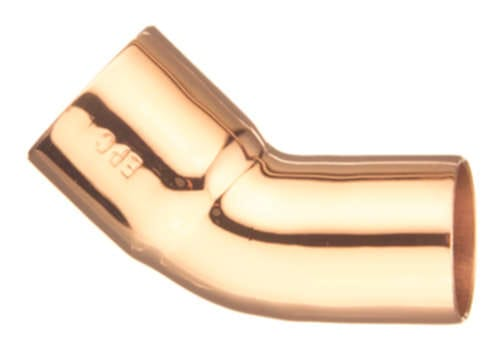

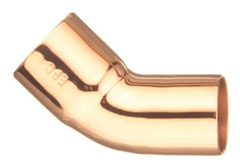

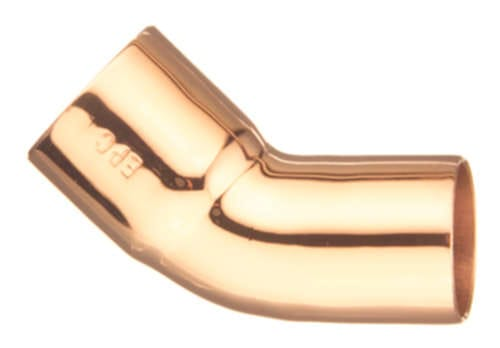

Elkhart Products ST45ELL-58 45 Degree Street Elbow 5/8 in

Product Description

The ELKHART PRODUCTS ST45ELL-58 is a 45-degree street elbow designed for copper tubing systems in residential and light commercial plumbing applications. Manufactured from wrot copper, this fitting uses a solder-joint connection with a fitting-to-copper (FTG x C) configuration, allowing it to be inserted directly into another fitting socket without an additional coupling. At 0.059 pounds and compact overall dimensions, it is suited for tight installations where a direction change is needed without adding excessive bulk to the assembly.

This street elbow is used in potable water supply lines, hydronic heating distribution piping, and general copper plumbing systems. The 5/8-inch size corresponds to a 3/4-inch outside diameter tube. Plumbers and pipefitters install this fitting wherever a 45-degree directional change is required inline with existing copper runs. The FTG end accepts a standard C-end fitting, streamlining transitions and reducing the number of fittings required in a run.

Key Features

• Wrot copper construction for durability and compatibility with solder-joint copper systems
• 45-degree street configuration with FTG x C connection eliminates the need for an extra coupling
• 5/8-inch size with 3/4-inch outside diameter for standard copper tube sizing
• Solder-type joint suitable for both potable water and hydronic applications
• Lightweight at 0.059 pounds for easy handling in confined spaces

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 5/8-inch wrot copper solder-joint plumbing systems using standard FTG x C end configurations.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off and drain the water supply before cutting into any existing line. Clean and flux both the fitting socket and tube end thoroughly before soldering, and use lead-free solder where required by code for potable water systems. Allow the joint to cool completely before restoring water pressure.

Technical Specifications

• Size: 5/8 inches (3/4 inch OD)
• Material: Wrot Copper
• Connection Type: FTG x C (Fitting x Cup)
• Joint Type: Solder
• Angle: 45 Degrees
• Length: 1.39 inches
• Width: 1.90 inches
• Height: 0.83 inches
• Weight: 0.059 pounds
• UPC: 683264311985

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: ST45ELL-58
