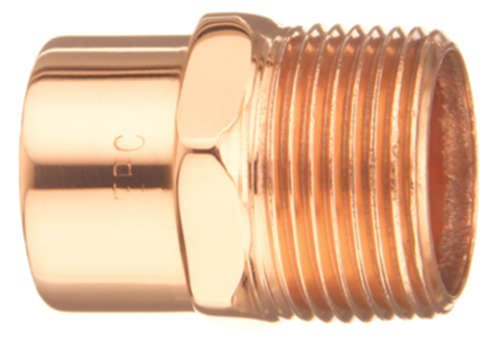

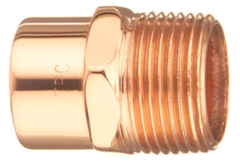

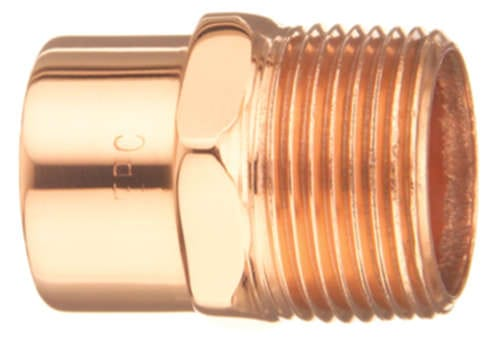

Elkhart Products MA-112 Male Adapter 1-1/2 in Copper Cxm

Product Description

The ELKHART PRODUCTS MA-112 is a wrot copper male adapter designed for soldered copper piping systems. It connects a copper tube end (C) to a male threaded fitting (M) in a 1-1/2 inch size, making it a standard transition fitting used in residential and commercial plumbing installations. Weighing 0.462 pounds and measuring 1.87 x 1.97 x 1.87 inches, this fitting is part of the WROT product line, meaning it is manufactured from wrought copper for consistent wall thickness and reliable sweat-solder joints. Licensed plumbers and pipefitters are the primary installers.

This adapter is used wherever a copper sweat connection must transition to a male NPT threaded connection. Typical applications include connecting copper supply lines to threaded valves, threaded fittings, or threaded equipment inlets in potable water, hydronic heating, and general plumbing systems. The 1-1/2 inch size suits main distribution lines, branch headers, and equipment supply connections in both residential and light commercial settings.

Key Features

• Wrot copper construction ensures uniform wall thickness and strong sweat-solder joints
• 1-1/2 inch CxM configuration transitions copper tube to male threaded pipe
• Solder-type connection compatible with standard lead-free soldering practices
• Compact dimensions of 1.87 x 1.97 x 1.87 inches for tight installation spaces
• Lightweight at 0.462 pounds, reducing stress on connected piping

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch copper tube systems using CxM (sweat by male thread) connections in standard plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off and drain the water supply line before cutting or soldering. Clean and flux all mating surfaces thoroughly before applying heat, and use lead-free solder where required by code for potable water systems. Allow the joint to cool completely before restoring system pressure.

Technical Specifications

• Size: 1-1/2 inches
• Material: Copper (Wrot)
• Connection Type: C x M (Sweat x Male Thread)
• Join Method: Solder
• Dimensions (L x W x H): 1.87 x 1.97 x 1.87 inches
• Weight: 0.462 pounds
• Product Line: WROT
• UPC: 683264303683

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: MA-112
