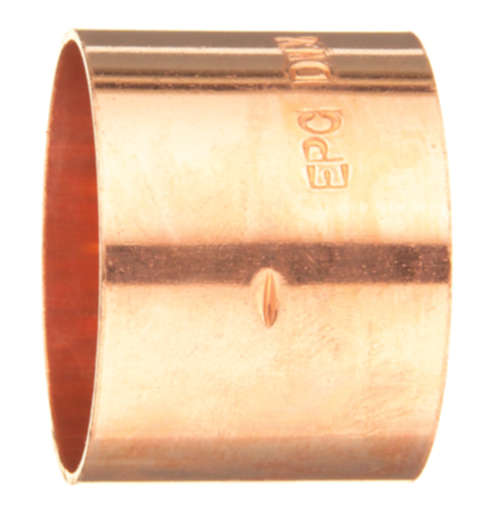

Elkhart Products H009350 Dwv Coupling with Stop 1-1/2 in

Product Description

The ELKHART PRODUCTS H009350 is a wrot copper DWV coupling with stop, designed for drain, waste, and vent piping systems in residential and light commercial plumbing installations. It connects two 1-1/2 inch copper DWV pipes using a standard cup-by-cup (C x C) solder joint configuration. The integral stop ensures consistent pipe seating depth for reliable, repeatable solder joints. At 0.089 pounds, this fitting is lightweight and easy to handle during rough-in work. Licensed plumbers and pipefitters working on above-ground DWV assemblies are the primary installers of this fitting.

This coupling is suited for above-ground non-pressure drain, waste, and vent applications where copper DWV fittings are specified. It is used in residential bathroom, kitchen, and laundry drain lines as well as light commercial plumbing systems. The WROT construction means the fitting is wrought — formed from worked copper — giving it consistent wall thickness and a clean bore for smooth drainage flow. This part carries model designation 301 within the Elkhart Products DWV fitting line.

Key Features

• Wrot copper construction for consistent wall thickness and smooth interior bore
• Integral stop for accurate, repeatable pipe seating depth before soldering
• Cup-by-cup (C x C) solder end connections for standard sweat joining
• 1-1/2 inch by 1-1/2 inch straight coupling — no reduction
• Lightweight at 0.089 pounds, suited for overhead and tight-access DWV rough-in work

Compatibility

Designed as an OEM-style replacement or new-construction fitting for 1-1/2 inch copper DWV piping systems using standard C x C solder connections in above-ground drain, waste, and vent applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes governing DWV copper soldering. Shut off the water supply and fully drain the affected piping before cutting or fitting. Clean all pipe ends and fitting cups thoroughly with emery cloth and apply approved flux before soldering. Do not use this fitting in pressure or underground applications — it is rated for DWV service only.

Technical Specifications

• Material: Copper (Wrot)
• Connection Type: C x C (Cup by Cup) Solder
• Size: 1-1/2 inches x 1-1/2 inches
• Product Line: WROT DWV
• Model: 301
• Length: 1.71 inches
• Width: 1.22 inches
• Height: 1.71 inches
• Weight: 0.089 pounds
• UPC: 683264462328

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: H009350
