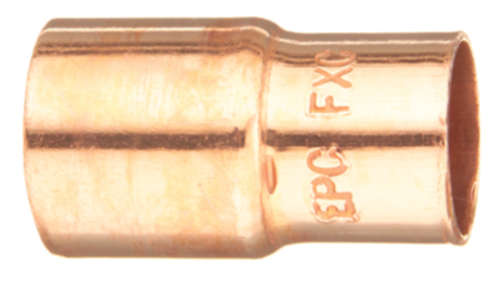

Elkhart Products FR-4X2 Copper Reducer 4x2 in Ftg X C

Product Description

The ELKHART PRODUCTS FR-4X2 is a wrought copper fitting reducer designed to transition between 4-inch and 2-inch copper pipe in pressure piping systems. It uses a FTG x C (fitting-to-copper) connection configuration and is joined by soldering, making it compatible with standard copper sweat installation practices. At 2.003 pounds, this is a substantial fitting suited for commercial and industrial plumbing applications where a reliable, leak-free reduction in line diameter is required. Licensed plumbers and pipefitters are the typical installers for this type of fitting.

This reducer is part of the Elkhart Products Wrot copper fitting line, which is manufactured to meet the dimensional and material standards expected in pressure piping systems. It is appropriate for residential and commercial plumbing systems where copper pipe is used and a reduction from a 4-inch main to a 2-inch branch or service line is needed. The FTG end accepts a copper pipe or fitting cup for in-line installation flexibility.

Key Features

• Wrought copper construction for durability and pressure integrity
• FTG x C connection allows in-line fitting-to-copper sweat installation
• Solder-type joint compatible with standard copper sweat practices
• 4-inch to 2-inch reduction for main-to-branch piping transitions
• Elkhart Products Model 118 Wrot fitting line

Compatibility

Designed as an OEM-style wrought copper sweat fitting for use in standard 4-inch to 2-inch copper pressure piping systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off and depressurize the water supply and drain the line before cutting or fitting. Clean all mating surfaces with emery cloth and apply flux before soldering. Avoid overheating the fitting, as excessive heat can damage the joint integrity.

Technical Specifications

• Material: Copper (Wrot)
• Connection Type: FTG x C
• Join Method: Solder
• Inlet Size: 4 inches
• Outlet Size: 2 inches
• Dimensions (L x W x H): 4.13 inches x 4.87 inches x 4.13 inches
• Weight: 2.003 pounds
• UPC: 683264321502

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: FR-4X2
