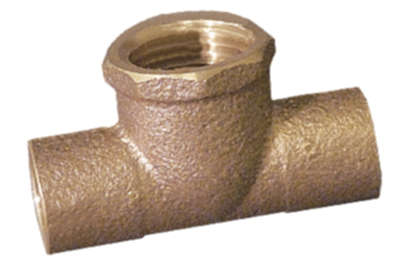

Elkhart Products FATEE-34LF 3/4 in Lead-free Cast Brass Tee

Product Description

The ELKHART PRODUCTS FATEE-34LF is a lead-free cast brass tee fitting designed for copper tube systems joined by sweat solder. This 3/4-inch fitting uses a C x C x F (copper x copper x female) configuration, allowing two inline copper runs and one female-threaded branch connection in a single body. At 0.355 pounds, the compact cast brass construction delivers the wall thickness and dimensional stability needed for pressurized plumbing supply lines. Licensed plumbers and pipefitters install this fitting in new construction and retrofit work where lead-free compliance is required by code.

This fitting is suited for residential and light commercial potable water distribution, hydronic heating branch lines, and copper rough-in work where a combination sweat-and-threaded branch outlet is required. The lead-free brass formulation meets current Safe Drinking Water Act requirements, making it appropriate for use in drinking water and hot water supply systems. The female threaded branch port accommodates a male-threaded adapter, valve, or fixture connection without an additional fitting.

Key Features

• Lead-free brass construction meets Safe Drinking Water Act compliance requirements
• C x C x F configuration combines two sweat-end runs with one female-threaded branch outlet
• 3/4-inch size fits standard 3/4-inch copper tube for main distribution lines
• Solder-type sweat connections provide reliable, low-profile joints in tight spaces
• Cast brass body provides consistent wall thickness and resistance to pressure fatigue

Compatibility

Designed as an OEM-style replacement and new-installation fitting compatible with standard 3/4-inch copper tube sweat and female-threaded connections in residential and commercial plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC or local plumbing code requirements. Shut off and drain the water supply completely before cutting into any existing line. Clean and flux all copper tube ends and fitting cups thoroughly before applying solder to ensure a leak-free joint. Allow soldered joints to cool fully before restoring system pressure and inspecting for leaks.

Technical Specifications

• Size: 3/4 inches
• Connection Type: C x C x F (Copper x Copper x Female)
• Join Method: Solder (Sweat)
• Material: Lead-Free Cast Brass
• Weight: 0.355 pounds
• UPC: 683264569621

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: FATEE-34LF
