Elkhart Products ELL-6 Copper 90 Elbow 6 Inch Solder C X C

Product Description

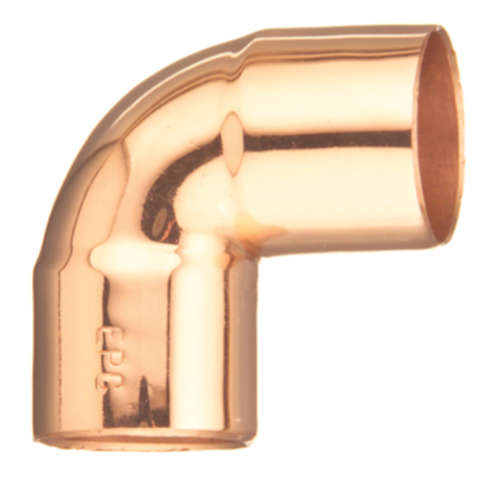

The ELKHART PRODUCTS ELL-6 is a wrought copper 90-degree close-rough elbow designed for soldered copper piping systems in commercial and industrial plumbing applications. Manufactured from wrought copper for superior pressure integrity and consistent wall thickness, this fitting connects two copper pipes in a 90-degree configuration using a standard solder-type C x C (cup by cup) joint. At 6 inches, this is a large-diameter fitting built for high-flow plumbing mains, mechanical room distribution, and similar demanding installations. At 15.2 pounds, it is a substantial, full-bodied fitting that holds dimensional tolerances appropriate for pressure-rated copper systems.

This fitting is suited for use in commercial plumbing, mechanical, and HVAC hydronic piping systems where 6-inch copper mains require a 90-degree direction change. Typical installations include boiler rooms, chilled water distribution, domestic hot and cold water mains, and industrial process piping. Licensed plumbers and pipefitters are the primary installers for a fitting of this size and application. The close-rough pattern keeps the elbow compact relative to the pipe centerline, which is useful in tight mechanical spaces.

Key Features

• Wrought copper construction provides consistent wall thickness and superior pressure performance compared to cast fittings
• 6-inch C x C solder-type connection for standard sweat-joint copper pipe assembly
• 90-degree bend in a close-rough pattern for compact directional changes in tight spaces
• Large-diameter fitting suitable for high-flow commercial and industrial water mains
• Dimensionally consistent for reliable fit with standard 6-inch copper tube

Compatibility

Designed as an OEM-style wrought copper solder fitting for use with standard 6-inch copper tube in residential, commercial, and industrial pressure piping systems.

Installation Notes

Installation of this fitting requires a licensed plumber or pipefitter in most jurisdictions, and work must comply with applicable codes such as the IPC or local adopted plumbing codes. Shut off and depressurize the water system and allow all pipe surfaces to cool before beginning soldering work. Clean all mating surfaces thoroughly and apply appropriate flux before soldering to ensure a leak-free joint. Do not exceed the pressure and temperature ratings of the copper piping system or associated solder alloy being used.

Technical Specifications

• Material: Wrought Copper
• Size: 6 inches
• Connection Type: C x C (Cup by Cup)
• Joint Type: Solder
• Fitting Angle: 90 Degrees
• Pattern: Close Rough
• Length: 10.16 inches
• Width: 10.16 inches
• Height: 6.38 inches
• Weight: 15.2 pounds
• Model: 107C
• UPC: 683264313682

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: ELL-6
