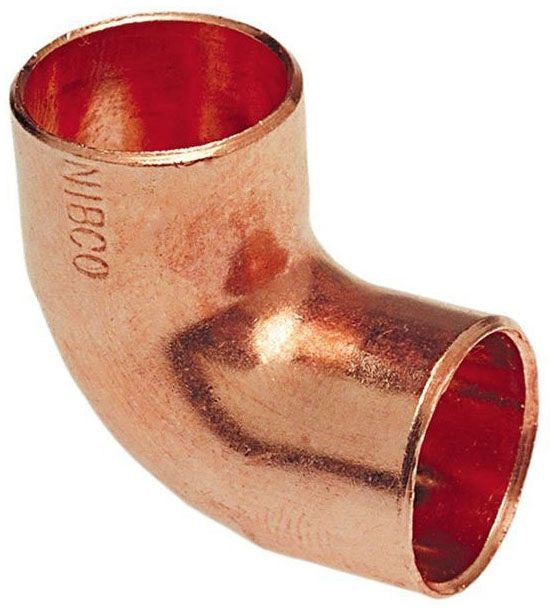

Elkhart Products ELL-38 Copper 90 Degree Elbow 3/8 in

Product Description

The ELKHART PRODUCTS ELL-38 is a 3/8-inch copper 90-degree elbow fitting designed for use in refrigeration, HVAC, and plumbing piping systems. Cleaned and bagged from the factory, this fitting meets the contamination-control requirements of refrigeration and ACR applications where internal cleanliness is critical. The 90-degree sweep allows technicians to change flow direction in tight spaces while maintaining a reliable, solderable joint. Licensed HVAC technicians, plumbers, and refrigeration mechanics working on copper tubing systems will find this a standard part of their fitting inventory.

This elbow is suited for residential and light commercial HVAC refrigerant piping, domestic water lines, and hydronic systems where 3/8-inch copper tubing is specified. The cleaned and bagged designation makes it appropriate for ACR (air conditioning and refrigeration) service work where moisture and particulate contamination inside the fitting must be minimized before brazing or soldering. It is a common replacement or new-installation fitting stocked by mechanical contractors and service technicians.

Key Features

• 3/8-inch copper construction for standard ACR and plumbing tubing compatibility
• 90-degree elbow geometry for directional changes in confined piping runs
• Cleaned and bagged from the factory to control internal contamination for refrigeration-grade service
• Solderable and brazeable joint suitable for sweat-connection installation per standard trade practices

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 3/8-inch copper tubing systems in HVAC, refrigeration, and plumbing applications.

Installation Notes

Installation should be performed by a licensed HVAC technician, refrigeration mechanic, or plumber using standard sweat-soldering or brazing procedures. Recover all refrigerant and isolate the system before cutting into any refrigerant circuit. Follow applicable codes including IFGC, IPC, and ASHRAE guidelines for brazing refrigerant-grade copper fittings. Do not install on a pressurized system and ensure the fitting interior remains clean and dry until the joint is made.

Technical Specifications

• Fitting Type: 90 Degree Elbow
• Material: Copper
• Tube Size: 3/8 inches
• Preparation: Cleaned and Bagged
• UPC: 1775420312667

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: ELL-38
