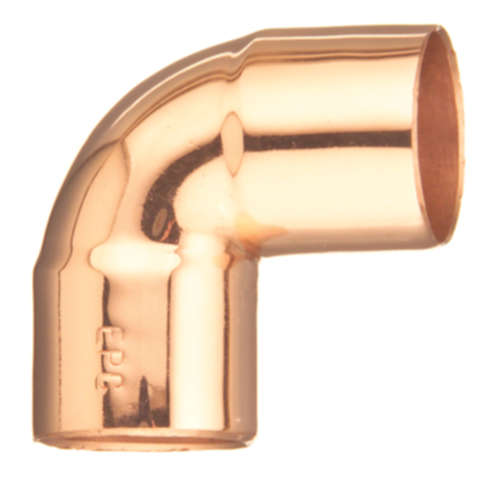

Elkhart Products ELL-2 90 Degree Copper Elbow 2 X 2 Inches

Product Description

The ELKHART PRODUCTS ELL-2 is a 90-degree close-rough copper elbow designed for solder-joint connections in residential and commercial plumbing systems. Part of the KLEENFIT product line, this fitting arrives cleaned and bagged from the factory, reducing prep time at the job site. It accepts standard copper pipe in a cup-by-cup (C x C) configuration, making it straightforward to sweat into an existing or new system. At 0.805 pounds and sized for 2-inch pipe, it is well-suited for main distribution runs, branch takeoffs, and riser transitions where a clean 90-degree direction change is required.

This elbow is used in potable water supply lines, hydronic heating distribution, and general copper piping systems requiring a 90-degree turn. The close-rough pattern keeps the fitting compact for tight spaces in wall cavities and mechanical rooms. Licensed plumbers working on residential water distribution, commercial mechanical systems, and hydronic loops will find this fitting a standard-service solution for 2-inch copper lines.

Key Features

• Factory-cleaned and bagged KLEENFIT copper fitting — ready to solder without additional cleaning
• C x C solder connection on both ends for reliable, code-accepted sweat joints
• Close-rough 90-degree configuration minimizes installed length for tight-clearance applications
• 2-inch x 2-inch sizing suits main distribution and larger branch piping runs
• Copper construction offers corrosion resistance and long service life in potable water systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 2-inch copper tube systems using sweat (solder) joints in residential and commercial plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off and drain the water supply line completely before cutting into the system. Clean pipe ends and fitting cups with emery cloth and flux before applying solder, even though the fitting arrives pre-cleaned from the factory. Avoid overheating the fitting during soldering, as excess heat can damage the copper and compromise the joint.

Technical Specifications

• Material: Copper
• Connection Type: C x C (Solder)
• Pipe Size: 2 inches x 2 inches
• Fitting Angle: 90 Degrees
• Product Line: KLEENFIT
• Dimensions (L x W x H): 3.92 inches x 3.92 inches x 2.26 inches
• Weight: 0.805 pounds
• UPC: 683264313231

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: ELL-2
