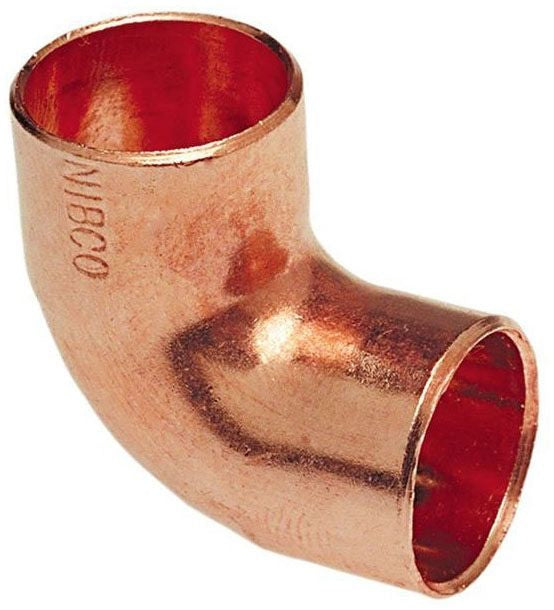

Elkhart Products ELL-14 Copper 90 Degree Elbow 0.25 in

Product Description

The ELKHART PRODUCTS ELL-14 is a 1/4-inch copper 90-degree elbow fitting designed for use in refrigeration, HVAC, and plumbing piping systems. Cleaned and bagged at the factory, this fitting meets cleanliness standards required for systems where contamination control matters, such as refrigerant lines and medical gas installations. The 90-degree bend allows technicians to redirect copper tubing runs at a right angle within tight or standard installations. It is sized for 1/4-inch copper tubing and is handled and packaged to maintain internal cleanliness from the production floor to the job site.

This fitting is appropriate for residential and light commercial HVAC refrigerant piping, plumbing supply lines, and other copper tubing applications requiring a 90-degree direction change. The cleaned and bagged designation makes it suitable for environments where particulate or oil contamination in the line set could damage system components. HVAC technicians, plumbers, and refrigeration mechanics are the primary installers in both new construction and retrofit applications.

Key Features

• 1/4-inch copper construction for standard tubing compatibility
• 90-degree elbow profile for right-angle directional changes in piping runs
• Factory cleaned and bagged to reduce contamination risk in sensitive systems
• Copper material provides corrosion resistance and reliable soldering or brazing adhesion

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 1/4-inch copper tubing systems in HVAC, refrigeration, and plumbing applications.

Installation Notes

Installation is performed by licensed HVAC technicians, refrigeration mechanics, or plumbers depending on the application. Shut off the refrigerant system or water supply and relieve pressure before cutting into any existing line. This fitting is joined by soldering or brazing in accordance with applicable local codes and ASHRAE or IFGC standards. Keep the fitting bagged until the moment of installation to preserve its cleaned condition.

Technical Specifications

• Tube Size: 0.25 inches
• Fitting Angle: 90 degrees
• Material: Copper
• Condition: Cleaned and Bagged
• UPC: 1775420312629

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: ELL-14
