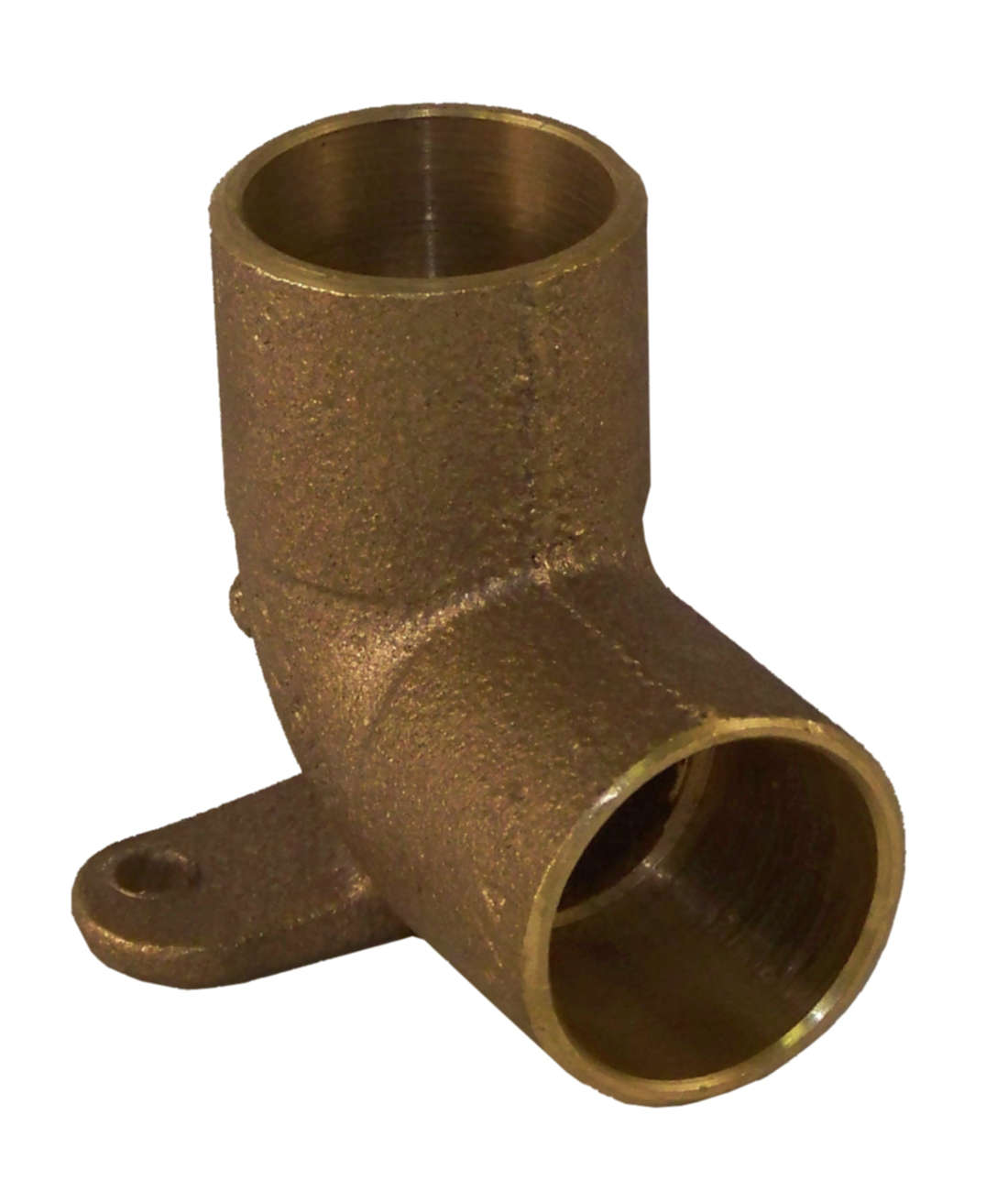

Elkhart Products DEELL-12 90 Drop Ear Elbow 1/2 in Cast Brass

Product Description

The ELKHART PRODUCTS DEELL-12 is a lead-free 90-degree drop ear elbow designed for copper water supply systems in residential and light commercial plumbing applications. Cast from lead-free brass, this fitting connects copper tubing using a C x C (copper-to-copper) solder configuration. The integrated ear tabs allow the fitting to be surface-mounted directly to a wall stud or backer plate, securing the supply stub-out in place before wall finish is applied. At 0.115 pounds, it is a compact, lightweight fitting suited for tight rough-in spaces. Licensed plumbers and pipefitters are the primary installers for this type of fitting.

This drop ear elbow is used wherever a copper supply line terminates at a wall-mounted fixture connection point, such as a shower arm, tub spout, or similar application. The 1/2-inch size is the most common supply line dimension in residential rough-in work. The lead-free brass construction meets modern potable water standards, making it appropriate for use in drinking water systems.

Key Features

• Lead-free brass construction meets potable water compliance requirements
• 90-degree drop ear configuration with mounting tabs for secure wall attachment
• C x C solder connections for standard copper tubing
• 1/2-inch size fits the most common residential supply line dimension
• Cast brass body for durability in concealed wall installations

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2-inch copper supply systems using solder-type C x C connections in residential and light commercial plumbing.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line before soldering. The ear tabs must be secured to solid blocking or a backer plate prior to closing the wall. Allow solder joints to cool fully before restoring water pressure.

Technical Specifications

• Size: 1/2 inches
• Material: Lead-Free Brass
• Product Line: Cast Brass
• Connection Type: C x C (Copper to Copper)
• Joint Type: Solder
• Dimensions (L x W): 1.34375 inches x 1.34375 inches
• Weight: 0.115 pounds
• UPC: 683264568822

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: DEELL-12
