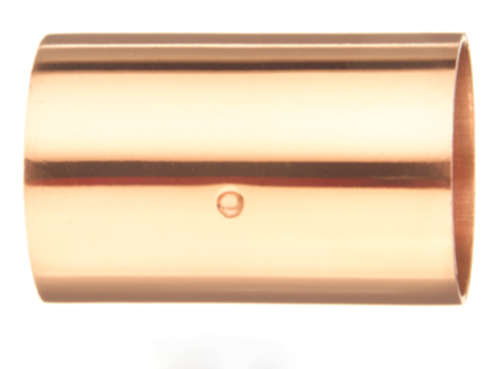

Elkhart Products COU-212 Copper Coupling with Stop 2.5in

Product Description

The ELKHART PRODUCTS COU-212 is a WROT copper solder coupling with an internal stop, designed for joining 2-1/2 inch copper tubing in a C x C (copper-to-copper) sweat configuration. The integral stop centers pipe ends during assembly and ensures consistent joint depth, reducing the risk of incomplete solder bonds. At 0.624 pounds, this Model 100 coupling is built from wrought copper for reliable performance in pressurized water supply and distribution systems. Licensed plumbers and pipefitters install this fitting in both new construction and retrofit applications where a permanent, leak-free connection is required.

This coupling is suited for residential and light commercial plumbing systems where 2-1/2 inch copper tubing is used in water distribution, hydronic heating, or mechanical room piping. The WROT designation indicates wrought copper construction, which provides tighter dimensional tolerances and a denser grain structure compared to cast fittings. The C x C end configuration accepts standard copper tube on both ends and requires soldering with appropriate flux and filler metal per applicable codes.

Key Features

• Integral stop ensures consistent pipe insertion depth for reliable solder joints
• WROT copper construction provides tight dimensional tolerances and high pressure integrity
• C x C ends accept standard 2-1/2 inch copper tube on both sides
• Sweat solder connection type for permanent, leak-resistant joints
• Compact form factor: 2.78 x 3.03 x 2.78 inches

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 2-1/2 inch copper tube systems using sweat solder C x C connections in residential and commercial plumbing installations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and local authority having jurisdiction requirements. Shut off and drain the water supply before cutting into any existing line. Clean and deburr tube ends, apply appropriate flux, and sweat solder both joints fully before restoring pressure. Do not apply heat to a fitting that has not been fully dried, as residual moisture can prevent proper solder flow.

Technical Specifications

• Size: 2-1/2 inches
• Material: Copper (WROT)
• Connection Type: C x C (Sweat Solder)
• Product Line: WROT Model 100
• Dimensions (L x W x H): 2.78 x 3.03 x 2.78 inches
• Weight: 0.624 pounds
• UPC: 683264309180

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: COU-212
