Elkhart Products COU-12 Copper Coupling 1/2 Inch C X C

Product Description

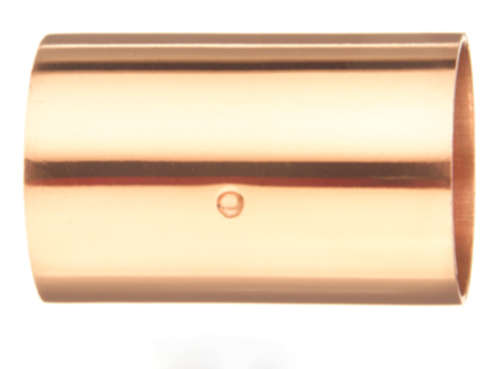

The ELKHART PRODUCTS COU-12 is a 1/2-inch copper coupling with stop, designed for sweat-solder connections in residential and commercial plumbing systems. Part of the KLEENFIT product line, this fitting arrives pre-cleaned and bagged to meet cleanliness requirements for solder-ready installation. The integrated stop prevents pipe over-insertion, ensuring consistent joint depth on every connection. At 0.021 pounds and compact dimensions, it is a standard-duty fitting suited for copper tube runs where reliable, leak-free joints are required. Licensed plumbers and pipefitters install this type of fitting daily on potable water, hydronic heating, and general-purpose copper piping systems.

This coupling is intended for use in 1/2-inch copper tubing applications using a cup-to-cup (C x C) solder joint configuration. The KLEENFIT pre-cleaning process reduces prep time on the job by delivering a fitting that is ready to flux and sweat without additional cleaning steps. It is well suited for new rough-in work, repair, and retrofit projects in residential and light commercial plumbing.

Key Features

• Pre-cleaned and bagged KLEENFIT construction reduces jobsite prep time
• Integral stop ensures consistent pipe insertion depth for uniform solder joints
• 1/2-inch C x C solder connection compatible with standard copper tube
• Copper construction provides corrosion resistance in water service applications
• Lightweight at 0.021 pounds, minimizing load on pipe runs

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 1/2-inch copper tubing systems using cup-to-cup solder joints in residential and commercial plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and drain the water supply before cutting into any existing line. Clean and flux all mating surfaces per standard sweat-soldering practice, even with KLEENFIT pre-cleaned fittings, if local code or conditions require it. Allow the joint to cool fully before restoring water pressure.

Technical Specifications

• Material: Copper
• Connection Type: C x C (Cup x Cup) Solder
• Size: 1/2 inch x 1/2 inch
• Length: 0.70 inches
• Width: 1.09 inches
• Height: 0.70 inches
• Weight: 0.021 pounds
• Product Line: KLEENFIT
• UPC: 683264309012

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: COU-12
