Elkhart Products CAP-12 Copper Tube Cap 1/2 Inch

Product Description

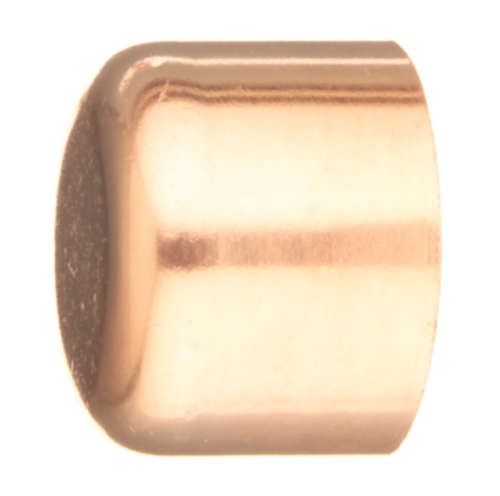

The ELKHART PRODUCTS CAP-12 is a copper solder-type tube cap designed to close off the end of a 1/2-inch copper tube. Part of the KLEENFIT product line, this cap is cleaned and bagged from the factory to meet the cleanliness requirements of refrigeration and plumbing installations. It connects via soldering, creating a permanent, leak-tight seal on open tube ends during system repairs, modifications, or new construction. Licensed plumbers and HVAC technicians rely on this type of fitting when capping unused ports, isolating sections of a system, or completing stub-out work on copper piping.

This cap is suited for residential and light commercial plumbing and HVAC applications wherever a 1/2-inch copper tube end must be permanently sealed. Its KLEENFIT designation indicates the fitting has been cleaned and bagged to reduce flux contamination risk, making it appropriate for use in refrigerant lines, potable water systems, and hydronic piping where contamination control matters.

Key Features

• Solder-type connection for a permanent, leak-tight seal on 1/2-inch copper tube ends
• KLEENFIT factory-cleaned and bagged to minimize internal contamination
• Copper construction provides corrosion resistance and compatibility with standard copper piping systems
• Lightweight at 0.016 pounds, minimizing load on stub-out piping
• Compact profile: 0.69 x 0.61 x 0.69 inches

Compatibility

Designed as an OEM-style solder end cap for 1/2-inch copper tube systems in standard residential and commercial plumbing and HVAC applications.

Installation Notes

Installation is performed by a licensed plumber or HVAC technician familiar with soldering copper fittings. Shut off and depressurize the system before cutting or capping any line. Clean and flux the tube end per standard practice before soldering. Follow applicable local plumbing codes and IFGC or IPC requirements for the specific system type.

Technical Specifications

• Size: 1/2 inch x 1/2 inch
• Material: Copper
• Connection Type: Solder
• Product Line: KLEENFIT
• Weight: 0.016 pounds
• Dimensions (L x W x H): 0.69 x 0.61 x 0.69 inches
• UPC: 683264306271

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: CAP-12
