Elkhart Products 9095650 Copper Tee 1/8x1/8x3/16 Cxcxc

Product Description

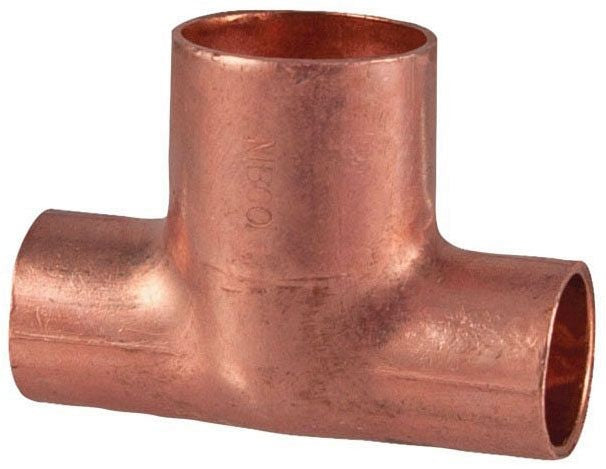

The ELKHART PRODUCTS 9095650 is a 611-series copper tee fitting designed for sweat (solder) connections on small-diameter copper tubing. It features two 1/8-inch run connections and a 3/16-inch OD branch outlet, configured as a CxCxC (copper by copper by copper) sweat fitting. This tee is used to split or branch a copper line in tight-clearance applications where precise, leak-free joints are required. Licensed plumbers, HVAC technicians, and refrigeration mechanics install this type of fitting using standard silver-bearing or lead-free solder per applicable codes.

This fitting is suited for small-bore copper tubing installations found in residential and light commercial plumbing, refrigeration lines, and HVAC refrigerant or condensate piping. Its compact dimensions make it appropriate for instrument tubing, gauge lines, and other low-volume flow applications where standard half-inch or three-quarter-inch fittings are too large. The CxCxC configuration requires all three connections to be sweated, making it a permanent, high-integrity joint when properly installed.

Key Features

• 611-series copper construction for reliable, corrosion-resistant service
• CxCxC sweat configuration on all three ports for fully soldered, permanent joints
• 1/8-inch run inlets paired with a 3/16-inch OD branch outlet for reducing tee applications
• Compact form factor suited for tight-clearance installations
• Compatible with standard lead-free solder and flux per plumbing and HVAC codes

Compatibility

Designed as an OEM-style replacement or new-installation fitting for small-diameter copper tubing systems requiring a CxCxC sweat tee connection.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or refrigeration mechanic in accordance with applicable IPC or IFGC requirements. Shut off and depressurize the system and purge all moisture from the tubing before soldering. Clean all mating surfaces with emery cloth and apply an appropriate flux before applying heat. Avoid overheating the fitting, as excessive heat can damage adjacent components or compromise the joint integrity.

Technical Specifications

• Connection Type: CxCxC (Sweat)
• Run Size: 1/8 inches x 1/8 inches
• Branch OD: 3/16 inches
• Series: 611
• Material: Copper
• UPC: 039923326126

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 9095650
