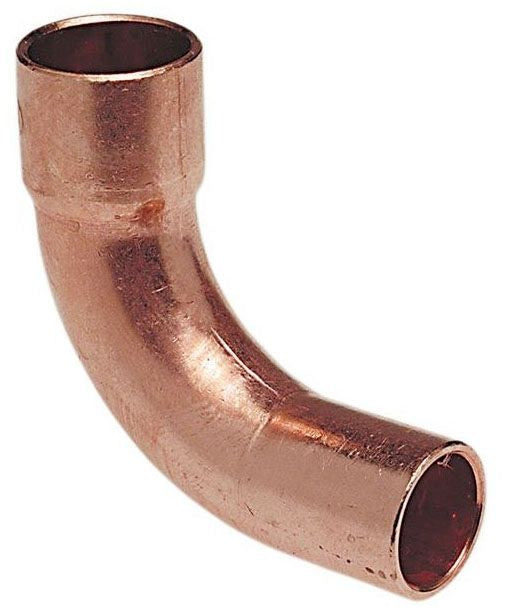

Elkhart Products 9080850 Wrot Copper 90 Deg Elbow 2 in

Product Description

The ELKHART PRODUCTS 9080850 is a wrot copper 90-degree long radius elbow fitting designed for soldered copper piping systems. It connects using a fitting-to-copper (FTG x C) joint configuration, making it suitable for tight inline connections where a standard fitting socket is not available on one end. At 2 inches, this elbow handles larger-diameter copper lines common in commercial and residential plumbing, hydronic heating, and HVAC refrigerant or condensate applications. Wrot copper construction ensures consistent wall thickness, pressure integrity, and reliable solder joints. Licensed plumbers and pipefitters install this fitting wherever a 90-degree directional change with a long radius sweep is required.

This elbow is used in 2-inch copper piping systems across residential and light commercial installations. The long radius design reduces flow turbulence and pressure drop compared to short radius elbows, making it a preferred choice for hydronic heating loops, domestic water distribution, and HVAC chilled or condenser water piping. The FTG x C end configuration allows one end to be inserted directly into another fitting socket, eliminating an extra coupling in tight piping runs.

Key Features

• Wrot copper construction for consistent wall thickness and reliable solder adhesion
• Long radius sweep reduces flow resistance and pressure drop in 2-inch lines
• FTG x C end configuration enables direct fitting-to-fitting connections
• 90-degree bend suits standard directional changes in copper piping layouts
• Compatible with standard lead-free solder and flux per plumbing code requirements

Compatibility

Designed as an OEM-style replacement and standard-service fitting for 2-inch wrot copper piping systems using soldered FTG x C joint connections.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following local plumbing codes and ASME B16.22 standards for wrought copper fittings. Shut off and drain the affected water or fluid line before cutting and fitting. Clean and deburr pipe ends, apply appropriate lead-free flux, and solder using accepted torch technique. Do not apply heat to a fitting that still contains residual moisture or pressure.

Technical Specifications

• Size: 2 inches
• End Connection: FTG x C (Fitting x Cup)
• Fitting Angle: 90 degrees
• Radius Type: Long Radius
• Material: Wrot Copper
• UPC: 039923318503

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 9080850
