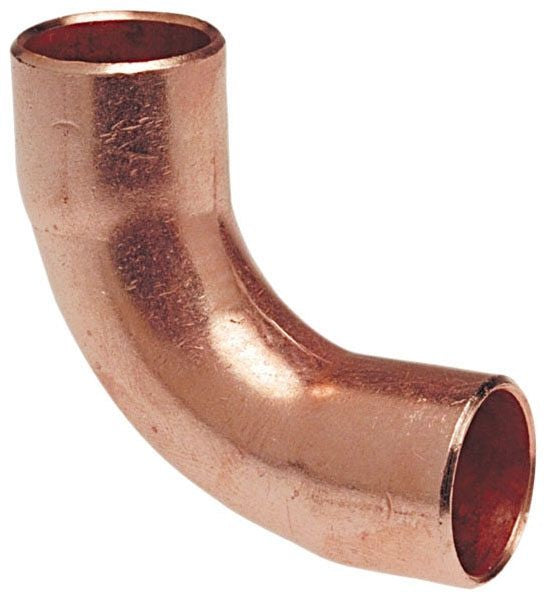

Elkhart Products 9077850CB Copper Long Sweep 90 Elbow

Product Description

The ELKHART PRODUCTS 9077850CB is a 1/2 inch copper long sweep 90-degree elbow designed for use in residential and commercial plumbing and hydronic systems. The long sweep geometry provides a gradual change in flow direction, reducing turbulence and pressure drop compared to standard short-radius elbows. This fitting ships cleaned and bagged, meeting the cleanliness requirements for medical gas, refrigerant, and high-purity water applications. It is installed by licensed plumbers and pipefitters working on copper distribution lines.

This long sweep 90 elbow is suited for potable water supply lines, radiant heating systems, and other applications where maintaining flow efficiency matters. The cleaned and bagged packaging makes it appropriate for ACR (air conditioning and refrigeration) and medical gas piping where contamination control is required by code. It fits standard 1/2 inch copper tubing and is joined using conventional sweat soldering or brazing methods.

Key Features

• Long sweep 90-degree bend reduces flow restriction and pressure drop
• Cleaned and bagged packaging meets purity requirements for ACR and medical gas applications
• 1/2 inch size fits standard copper tubing
• Compatible with sweat solder and braze joining methods
• Copper construction provides corrosion resistance and long service life

Compatibility

Designed as an OEM-style replacement fitting for 1/2 inch copper tubing systems in plumbing, HVAC, and refrigeration piping installations.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the IPC or IFGC as adopted. Shut off and depressurize the water or refrigerant system and allow all components to cool before cutting and fitting. Clean and flux mating tube ends thoroughly before soldering or brazing. For medical gas or ACR applications, follow NFPA 99 or applicable refrigerant piping standards for cleaning and joining procedures.

Technical Specifications

• Size: 1/2 inch
• Material: Copper
• Fitting Type: Long Sweep 90-Degree Elbow
• Packaging: Cleaned and Bagged
• UPC: 039923303790

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 9077850CB
