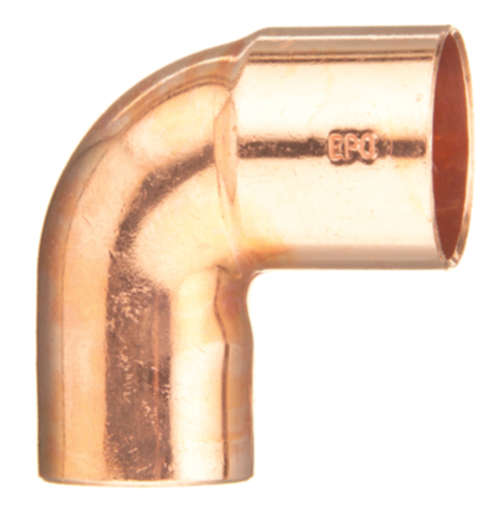

Elkhart Products 9059400 90 Street Elbow 2-1/2 in Copper

Product Description

The ELKHART PRODUCTS 9059400 is a 2-1/2 inch wrought copper 90-degree street elbow designed for solder-joint copper piping systems. It features a fitting-to-copper (FTG x C) connection, allowing one end to insert directly into another fitting socket without a separate coupling. Manufactured from wrought copper, this elbow delivers consistent wall thickness and reliable joint integrity under pressure. It is a standard close-rough configuration, suited for tight-clearance rough-in work where a directional change is needed in a copper water or HVAC hydronic line. Licensed plumbers and pipefitters are the primary installers of this fitting.

This street elbow is used in residential and light commercial plumbing and hydronic heating systems wherever a 90-degree change of direction is required in 2-1/2 inch copper piping. The FTG x C configuration is especially useful when connecting directly out of a valve, tee, or other fitting body, reducing the number of components needed in a run. It is appropriate for water supply, heating, and cooling distribution piping applications that use sweat solder connections.

Key Features

• Wrought copper construction for consistent wall thickness and strong solder joints
• FTG x C connection allows direct insertion into a fitting socket, eliminating an extra coupling
• 90-degree street configuration supports tight-clearance rough-in layouts
• Solder-joint type compatible with standard plumbing torch and flux procedures
• Close-rough design suited for production plumbing and finish rough-in work

Compatibility

Designed as an OEM-style wrought copper solder fitting for use in standard 2-1/2 inch copper piping systems following ASTM and applicable plumbing code requirements.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IAPMO or IPC standards. Shut off and drain the water supply completely before cutting into any existing line. Clean and flux all mating copper surfaces thoroughly before applying heat to ensure a leak-free solder joint. Avoid overheating the fitting, as excessive heat can damage the joint or nearby components.

Technical Specifications

• Size: 2-1/2 inches
• Material: Wrought Copper
• Connection Type: FTG x C (Fitting x Cup)
• Joint Type: Solder
• Angle: 90 degrees
• Dimensions (L x W x H): 4.53 inches x 4.54 inches x 2.78 inches
• Weight: 1.187 pounds
• Model: 107C2
• UPC: 683264314283

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 9059400
