Elkhart Products 9057200 Elbow Fitting Close Ruff 90 Degree 4 Inch 4 Inch

Product Description

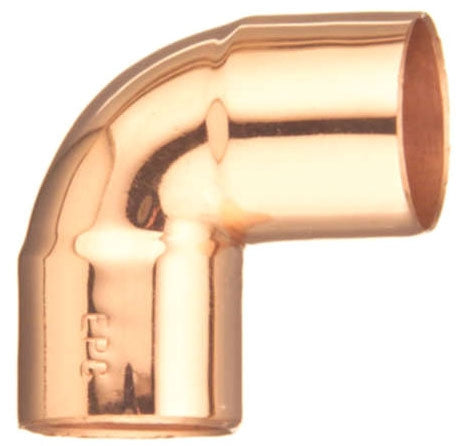

The Elkhart Products 9057200 is a copper elbow fitting designed for plumbing applications. Its close rough design makes it suitable for residential and industrial systems. This fitting has a ninety-degree angle, facilitating efficient tubing connections.

• Pressure rating of two hundred ninety PSI at temperatures ranging from negative twenty to one hundred degrees Fahrenheit.
• Constructed from durable copper material for longevity and reliability.
• Meets ASME/ANSI B16.22 and MSS SP104 standards.

Product Highlights

Use the 9057200 elbow fitting in various piping systems for tight bends and secure connections.

Product Information

Standard Information

• Manufacturer: Elkhart Products
• UPC: 683264313521

Technical Specifications

• Product Type: Pipes/Valves/Fittings
• Sub Type: Elbow Fitting
• Series/Model: 107C
• Size A: 4 Inch
• Size B: 4 Inch
• Angle: 90 Degree
• End Connection: Female Soldered x Female Soldered
• Thickness: 0.096 Inch
• Pressure Rating: 290 PSI at -20 to 100 Deg F
• Temperature Rating: 400 Deg F
• Material: Copper
• Process: Wrot
• Application: Industrial, Residential
• Applicable Standard: ASME/ANSI B16.22, MSS SP104
