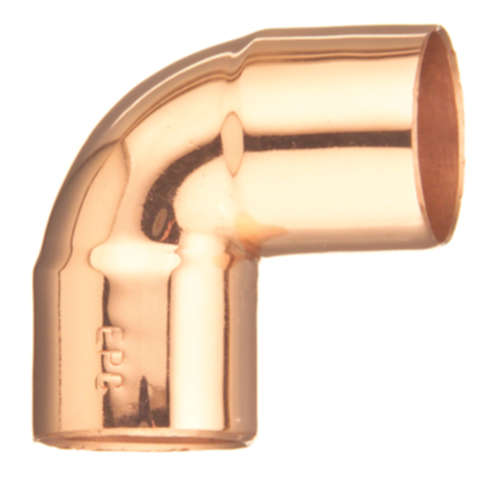

Elkhart Products 9056650CB Copper 90 Elbow 2-1/2 in Cxc

Product Description

The ELKHART PRODUCTS 9056650CB is a 2-1/2 inch copper 90-degree close rough elbow fitting designed for solder-joint (sweat) copper piping systems. Part of the KLEENFIT product line, this fitting ships cleaned and bagged to maintain flux-ready surfaces and reduce prep time on the job. It connects copper tube to copper tube using standard C x C ends and conforms to the close rough pattern, making it suitable for tight-radius directional changes in domestic water, hydronic heating, and commercial plumbing installations. Licensed plumbers and pipefitters are the primary installers for a fitting of this type and size.

This elbow is well suited for 2-1/2 inch copper piping in residential and light commercial plumbing systems where a 90-degree directional change is required. The close rough configuration allows the fitting to be used in confined spaces or roughed-in applications where a tighter centerline-to-end dimension is needed. The KLEENFIT bagging process keeps the internal and external surfaces free of contamination until the fitting is ready for use, which is especially important on larger-diameter copper work where rework is costly.

Key Features

• 2-1/2 inch C x C solder-end connections for standard copper tube systems
• Close rough elbow pattern suits tight-space directional changes in roughed-in piping
• KLEENFIT process — cleaned and individually bagged to preserve flux-ready copper surfaces
• Weighs 1.180 pounds — full copper construction for corrosion resistance in potable and hydronic applications
• Model 107C design meets standard dimensional requirements for wrought copper pressure fittings

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 2-1/2 inch copper tube systems using C x C solder joints in residential and commercial plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with IPC or applicable local plumbing code. Shut off and drain the water supply completely before cutting into existing piping. Clean tube ends and fitting cups, apply an approved flux, and solder with lead-free solder per code requirements for potable water systems. Allow joints to cool fully before restoring system pressure.

Technical Specifications

• Size: 2-1/2 inches x 2-1/2 inches
• Connection Type: C x C (Copper x Copper)
• Joint Type: Solder (Sweat)
• Material: Copper
• Product Line: KLEENFIT
• Model: 107C
• Length: 4.53 inches
• Width: 4.53 inches
• Height: 2.78 inches
• Weight: 1.180 pounds
• UPC: 683264313316

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 9056650CB
