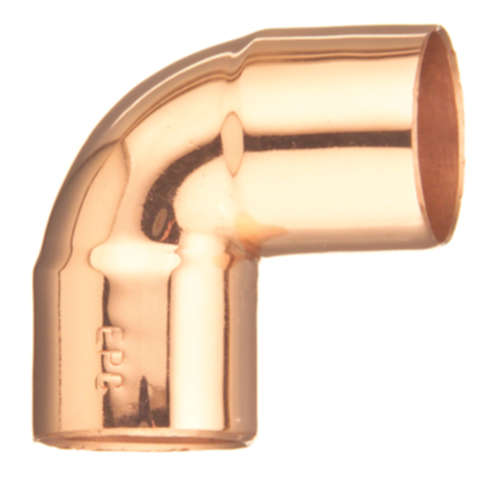

Elkhart Products 9055200 90 Degree Copper Elbow 1/8 in

Product Description

The ELKHART PRODUCTS 9055200 is a 90-degree close rough copper elbow fitting designed for soldered copper tubing systems. Built from wrought copper to WROT product line standards, this fitting connects 1/8-inch copper tube in a C x C (cup-by-cup) configuration using standard solder joining methods. Its compact close-rough profile allows installation in tight spaces where standard elbows cannot seat properly. Plumbers and pipefitters install this fitting in residential and light commercial potable water, hydronic, and refrigeration piping systems where a 90-degree directional change is required in small-diameter copper lines.

This elbow is suited for 1/8-inch copper tubing applications including instrument lines, small-diameter branch connections, and refrigeration piping. The wrought copper construction provides reliable joint integrity when soldered with appropriate flux and solder per applicable codes. This fitting is commonly used by licensed plumbers and HVAC technicians working on small-bore copper systems in both new construction and retrofit installations.

Key Features

• 90-degree close rough elbow allows directional change in confined spaces
• Wrought copper construction for consistent wall thickness and solder joint reliability
• C x C cup ends accept standard 1/8-inch copper tube for solder connection
• Lightweight at 0.008 pounds, minimizing load on small-diameter piping
• Compact dimensions of 0.84 x 0.84 x 0.31 inches fit tight installation areas

Compatibility

Designed as an OEM-style wrought copper solder fitting for use with standard 1/8-inch copper tubing in potable water, hydronic, and refrigeration piping applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local plumbing codes and ASME B16.22 standards for wrought copper fittings. Shut off and depressurize the water or refrigerant system completely before cutting or joining any copper piping. Clean tube ends and fitting cups thoroughly with emery cloth and apply appropriate flux before soldering. Do not overheat the fitting during the soldering process, as excessive heat can damage the copper and compromise joint integrity.

Technical Specifications

• Size: 1/8 inches
• Connection Type: C x C (Cup x Cup)
• Join Method: Solder
• Material: Wrought Copper
• Product Line: WROT
• Model: 107C
• Dimensions (L x W x H): 0.84 x 0.84 x 0.31 inches
• Weight: 0.008 pounds
• UPC: 683264312609

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 9055200
