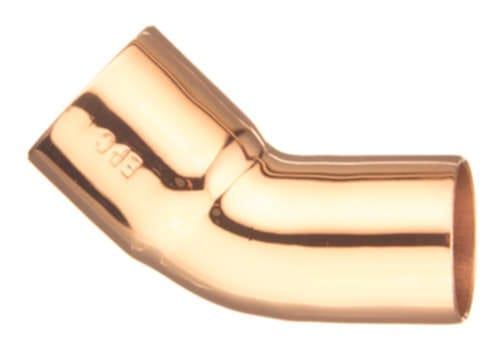

Elkhart Products 9046500CB 45 Street Elbow 1-1/4 in Copper

Product Description

The ELKHART PRODUCTS 9046500CB is a 45-degree street elbow from the KLEENFIT product line, designed for copper sweat (solder) connections in residential and commercial plumbing systems. Sized at 1-1/4 inches x 1-1/4 inches with a FTG x C connection configuration, this fitting accepts a copper tube on one end and a fitting socket on the other, allowing it to connect directly into another fitting without a coupling. Weighing 0.229 pounds, it is a compact, all-copper component suited for directional changes in water supply and distribution piping. Licensed plumbers and pipefitters are the primary installers of this type of fitting.

This street elbow is used in water supply, hydronic heating, and general plumbing applications where a 45-degree change in direction is needed. The KLEENFIT designation indicates the fitting has been cleaned and bagged for solder-ready installation, reducing prep time on the job. It is appropriate for both new construction rough-in and retrofit work in residential and light commercial piping systems where 1-1/4 inch copper distribution lines are used.

Key Features

• 45-degree street elbow configuration for directional changes without an additional coupling
• FTG x C connection allows direct fitting-to-fitting assembly
• All-copper construction for corrosion resistance and reliable solder joints
• KLEENFIT — pre-cleaned and bagged for solder-ready use straight out of packaging
• Compact form factor at 2.31 x 3.07 x 1.48 inches

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 1-1/4 inch copper plumbing systems using sweat solder connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off and drain the water supply before cutting or fitting any copper line. Clean mating surfaces and apply flux per standard soldering practice before heating. Avoid overheating the fitting, as excessive heat can compromise joint integrity and damage nearby components.

Technical Specifications

• Size: 1-1/4 inches x 1-1/4 inches
• Connection Type: FTG x C (Fitting x Cup)
• Join Method: Solder (Sweat)
• Material: Copper
• Product Line: KLEENFIT
• Dimensions (L x W x H): 2.31 x 3.07 x 1.48 inches
• Weight: 0.229 pounds
• UPC: 683264312142

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 9046500CB
