Elkhart Products 9046400CB 45 Degree Copper Street Elbow 1 in

Product Description

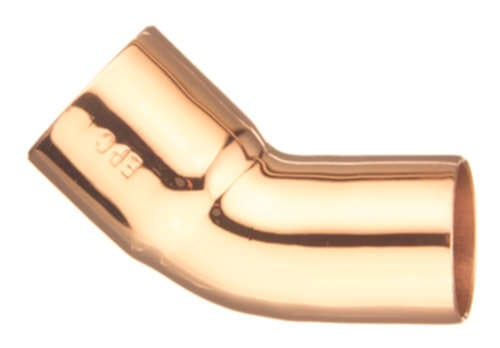

The ELKHART PRODUCTS 9046400CB is a 45-degree copper street elbow designed for soldered copper piping systems. It connects a fitting end (FTG) to a copper tube end (C), allowing directional changes in tight plumbing runs without the need for an additional coupling. Part of the KLEENFIT product line, this fitting ships cleaned and bagged to meet cleanliness requirements for potable water and mechanical systems. At 0.134 pounds, it is a compact, lightweight component suited for both new installation and repair work performed by licensed plumbers and pipefitters.

This fitting is used in residential and light commercial plumbing systems where a 45-degree change of direction is required in a copper supply line. The street configuration — with one male fitting end and one female cup end — allows it to be inserted directly into another fitting, saving space in confined areas such as wall cavities, mechanical closets, and under-sink installations. It is compatible with standard copper tube and fittings using sweat solder connections.

Key Features

• 45-degree street elbow configuration for directional changes in copper piping runs
• FTG x C connection allows direct insertion into mating fittings without an extra coupling
• Copper construction provides corrosion resistance and long service life in water systems
• KLEENFIT product line — cleaned and bagged for potable water system readiness
• Lightweight at 0.134 pounds with a compact overall footprint

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 1-inch copper sweat plumbing systems using standard FTG x C solder connections.

Installation Notes

Installation is performed by a licensed plumber or pipefitter following applicable IPC and local plumbing code requirements. Shut off and drain the water supply before cutting into any existing line. Clean and flux all mating surfaces before soldering, and use lead-free solder where required for potable water applications. Inspect the joint for full solder flow around the entire fitting cup before restoring pressure.

Technical Specifications

• Size: 1 inch x 1 inch
• Material: Copper
• Connection Type: FTG x C (Fitting x Cup)
• Joint Method: Solder (Sweat)
• Product Line: KLEENFIT
• Length: 2.03 inches
• Width: 2.76 inches
• Height: 1.23 inches
• Weight: 0.134 pounds
• UPC: 683264312081

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 9046400CB
