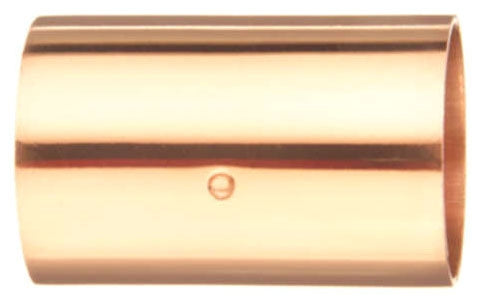

Elkhart Products 9001700 COF114CPL 1-1/4 Copper W/Stop CXC Wrot Coupling

Product Description

The Elkhart Products 9001700 is a coupling fitting designed for both industrial and residential applications. This copper coupling features a stop type, ensuring robust connections in piping systems.

• Application in both industrial and residential installations
• High pressure rating of 700 PSI
• Temperature resistance up to 400 degrees Fahrenheit

Product Highlights

This fitting provides reliability in high-temperature and high-pressure environments. It is suitable for seamless copper tubing consistent with ASTM standards.

Product Information

Standard Information

• Manufacturer: Elkhart Products
• UPC: 39923412966

Technical Specifications

• Type: Stop
• Size A: 1-1/4 Inch
• Size B: 1-1/4 Inch
• Thickness: 0.044 Inch
• End Connection: Female Soldered x Female Soldered
• Material: Copper
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 400 Deg F
• Applicable Standard: ASME/ANSI B16.22, MSS SP104, UL (Canada and US), LEED
• Catalog Number: 9001700
• Commodity Code Description Level 3: Tube Fittings
• Product Type: Pipes/Valves/Fittings
• Series/Model: 100
