Elkhart Products 45ELL-2 Copper 45 Degree Elbow 2 in

Product Description

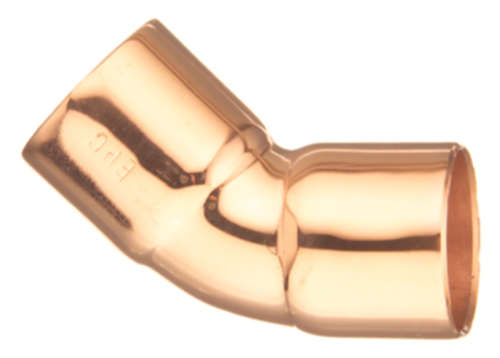

The ELKHART PRODUCTS 45ELL-2 is a 2-inch x 2-inch copper 45-degree elbow fitting designed for soldered copper piping systems. Part of the KLEENFIT product line, this fitting arrives cleaned and bagged to maintain interior cleanliness and reduce prep time on the job. It is used to redirect flow at a 45-degree angle in water supply, hydronic heating, and plumbing distribution systems. The cup-by-cup (C x C) connection type accepts standard copper tubing and is joined using standard solder and flux. At 0.625 pounds, it is a lightweight yet durable fitting suited for both new construction and repair work performed by licensed plumbers and pipefitters.

This fitting is appropriate for residential and light commercial plumbing applications where a 45-degree change in direction is required within a copper piping run. The KLEENFIT cleaning and bagging process makes it particularly well suited for potable water systems, refrigeration lines, and hydronic loops where contamination control matters. It is compatible with standard 2-inch nominal copper tubing joined by sweat soldering.

Key Features

• 2-inch x 2-inch cup-by-cup (C x C) connection for standard copper tubing
• 45-degree elbow geometry for smooth directional change in piping runs
• KLEENFIT line — factory cleaned and bagged to minimize contamination risk
• Solder-joint connection type for reliable, leak-resistant installation
• Copper construction provides corrosion resistance and long service life
• Lightweight at 0.625 pounds for easy handling during installation

Compatibility

Designed as an OEM-style sweat-solder fitting compatible with standard 2-inch nominal copper tubing used in residential and commercial plumbing, hydronic heating, and water distribution systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and drain the line before cutting and fitting. Clean and flux all mating surfaces before applying heat and solder, following standard sweat-soldering practice. Do not apply solder to a wet pipe, as moisture prevents a proper joint.

Technical Specifications

• Size: 2 inches x 2 inches
• Connection Type: C x C (Cup by Cup, Solder)
• Material: Copper
• Product Line: KLEENFIT
• Model: 106
• Length: 3.43 inches
• Width: 4.42 inches
• Height: 2.26 inches
• Weight: 0.625 pounds
• UPC: 683264311428

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 45ELL-2
