Elkhart Products 45ELL-114 Copper 45 Elbow 1-1/4 in Cxc

Product Description

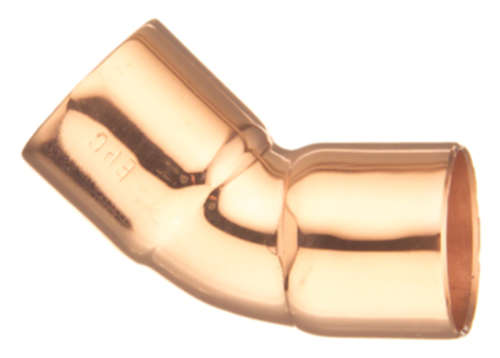

The ELKHART PRODUCTS 45ELL-114 is a 45-degree copper solder elbow designed for use in residential and commercial plumbing and hydronic piping systems. Part of the KLEENFIT product line, this fitting is cleaned and bagged at the factory to meet the preparation standards required for solder joints, reducing contamination risk and prep time on the job. The fitting measures 1-1/4 inches on both ends with a copper-to-copper (CxC) connection type and weighs 0.229 pounds. It is a standard solder-type fitting installed by licensed plumbers and pipefitters working with copper supply, drain, or hydronic lines.

This 45-degree elbow is suited for directional changes in copper piping runs where a gradual 45-degree offset is required. Typical applications include potable water supply lines, heating and cooling hydronic loops, and general copper pipe distribution systems in both residential and light commercial construction. The KLEENFIT designation indicates the fitting has been factory-cleaned and individually bagged to maintain joint-ready surface conditions until installation.

Key Features

• Factory-cleaned and bagged under the KLEENFIT process for solder-ready joint surfaces
• 45-degree sweep for directional offset in copper piping runs
• Copper-to-copper (CxC) solder connection on both ends
• 1-1/4 inches x 1-1/4 inches nominal size
• Lightweight at 0.229 pounds for easy handling in tight spaces

Compatibility

Designed as a standard CxC solder-type replacement or new-installation fitting compatible with 1-1/4 inch copper pipe in plumbing and hydronic piping systems per applicable codes.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off and depressurize the water supply and allow pipes to cool completely before soldering. Clean pipe ends and fitting sockets thoroughly with emery cloth and flux before applying solder, even with KLEENFIT-prepared fittings, if field conditions have introduced contamination. Do not apply flame directly to the fitting socket for extended periods, as overheating can damage the fitting and result in a failed joint.

Technical Specifications

• Material: Copper
• Connection Type: CxC (Copper x Copper) Solder
• Size: 1-1/4 inches x 1-1/4 inches
• Fitting Angle: 45 degrees
• Product Line: KLEENFIT
• Weight: 0.229 pounds
• Length: 2.31 inches
• Width: 3.05 inches
• Height: 1.48 inches
• UPC: 683264311305

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 45ELL-114
