Elkhart Products 114X34X34 Wrot Copper Reducing Tee

Product Description

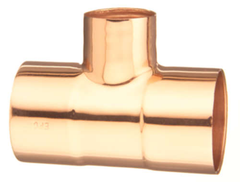

The ELKHART PRODUCTS 114X34X34 is a wrot copper reducing tee designed for sweat-solder copper piping systems. It transitions from a 1-1/4 inch run to 3/4 inch branch and outlet connections in a single fitting, reducing the need for additional adapters. Made from wrot copper, this fitting offers the dense grain structure and pressure integrity that hydronic, domestic water, and mechanical piping applications demand. All three ports use a C x C x C solder-cup configuration, allowing a licensed plumber or pipefitter to make clean, consistent brazed or soldered joints using standard copper tubing.

This reducing tee is suited for residential and light commercial plumbing installations where a main supply line steps down to a smaller branch line. Common applications include domestic hot and cold water distribution, hydronic heating loops, and general mechanical piping where copper is the specified material. The solder-cup ends are compatible with standard Type K, L, and M copper tubing of the corresponding sizes.

Key Features

• Wrot copper construction for high-density grain structure and reliable pressure performance
• 1-1/4 inches run x 3/4 inches x 3/4 inches reducing configuration in a single fitting
• C x C x C solder-cup ends for standard sweat or braze joining
• Compact form factor at 2.24 inches x 3.16 inches x 1.48 inches overall dimensions
• Lightweight at 0.297 pounds — easy to handle in tight spaces

Compatibility

Designed as an OEM-style replacement or new-installation fitting for copper piping systems using 1-1/4 inch run and 3/4 inch branch tubing joined by soldering or brazing.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off and drain the water supply completely before cutting into any existing line. Clean all tube ends and fitting cups with emery cloth or fitting brush, apply flux evenly, and heat uniformly before feeding solder. Avoid overheating wrot copper fittings, as excessive heat can damage the fitting and compromise joint integrity.

Technical Specifications

• Material: Copper (Wrot)
• Connection Type: C x C x C (Solder Cup)
• Join Method: Solder / Braze
• Run Size: 1-1/4 inches
• Branch Size: 3/4 inches
• Overall Dimensions (L x W x H): 2.24 inches x 3.16 inches x 1.48 inches
• Weight: 0.297 pounds
• UPC: 683264328983

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 114X34X34
