Elkhart Products 10051034 Female Reducing Adapter 1/2x1 in

Product Description

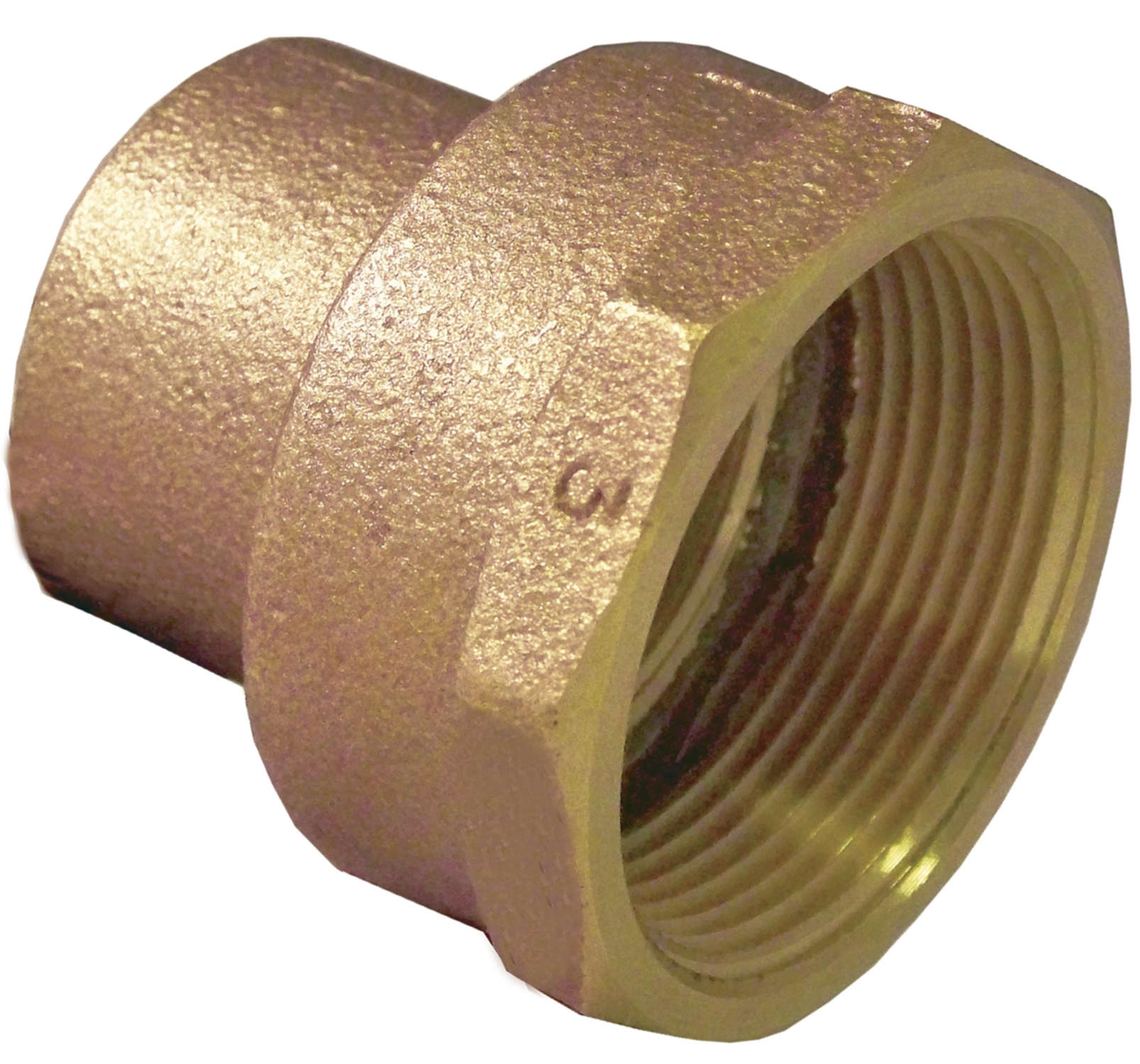

The ELKHART PRODUCTS 10051034 is a lead-free female reducing adapter designed for copper-to-female iron pipe (C x F) connections in residential and light commercial plumbing systems. Cast from lead-free brass, this fitting reduces from a 1-inch female iron pipe thread to a 1/2-inch copper sweat connection using a standard solder joint. It is rated for use in potable water systems where lead-free compliance is required. The compact cast brass body measures 1.71 inches x 1.64 inches x 1.71 inches and weighs 0.315 pounds. Licensed plumbers and pipefitters install this fitting when transitioning between threaded and copper supply lines.

This adapter is suited for potable water supply, hydronic heating, and general plumbing distribution applications where a threaded pipe must be reduced and transitioned to a smaller copper line. The C x F configuration allows a sweat connection on the copper side and a female threaded connection on the iron pipe side. Typical installations include under-sink supply transitions, boiler piping, and branch line reductions in residential and light commercial settings.

Key Features

• Lead-free brass construction meets federal and state lead-free requirements for potable water systems
• C x F connection — 1/2-inch copper sweat inlet, 1-inch female iron pipe thread outlet
• Cast brass body provides durability and reliable thread engagement
• Solder-type copper connection for a permanent, leak-resistant joint
• Compact profile: 1.71 inches x 1.64 inches x 1.71 inches, weighing 0.315 pounds

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 1/2-inch copper sweat and 1-inch female iron pipe thread plumbing applications in potable water and hydronic systems.

Installation Notes

Installation is performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line before beginning work. The copper side requires proper cleaning, flux application, and soldering to achieve a sound joint — do not overheat the fitting body. The female iron pipe side should be assembled with an appropriate thread sealant or PTFE tape per code requirements.

Technical Specifications

• Model: 4703R
• Size: 1/2 inch x 1 inch
• Connection Type: C x F (Copper Sweat x Female Iron Pipe Thread)
• Joint Type: Solder
• Material: Lead-Free Brass
• Product Line: Cast Brass
• Dimensions (L x W x H): 1.71 inches x 1.64 inches x 1.71 inches
• Weight: 0.315 pounds
• UPC: 683264510340

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 10051034
