Elkhart Products 10046352 CDF114L45 1-1/4 DWV CXC W 45 ELL

Product Description

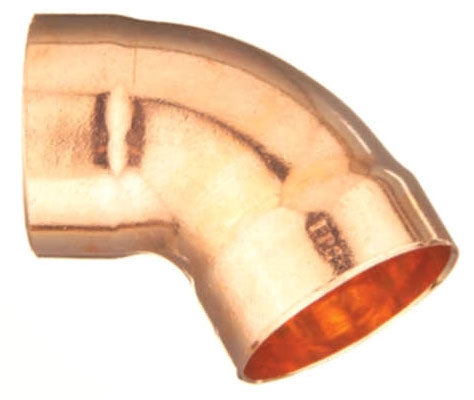

The Elkhart Products 10046352 is a copper elbow fitting designed for plumbing and HVAC applications. This fitting features a forty-five degree angle and is suitable for connecting pipes of one and one-quarter inches in size. Its robust construction and soldered connections ensure reliability in various environments.

• Pressure rated to four hundred thirty-five PSI.
• Temperature rated to four hundred degrees Fahrenheit.
• Manufactured under ASME/ANSI standards.

Product Highlights

This fitting is ideal for both industrial and residential use, specifically in drain, waste, and vent (DWV) systems.

Product Information

Standard Information

• Manufacturer: Elkhart Products
• UPC: 683264463523

Technical Specifications

• Angle: 45 Degree
• Applicable Standard: ASME/ANSI B16.22/B16.29, MSS SP104
• Application: Industrial, Residential, DWV
• End Connection: Female Soldered x Female Soldered
• Material: Copper
• Pressure Rating: 435 PSI at -20 to 100 Deg F
• Process: Wrot
• Size A: 1-1/4 Inch
• Size B: 1-1/4 Inch
• Temperature Rating: 400 Deg F
• Thickness: 0.044 Inch
